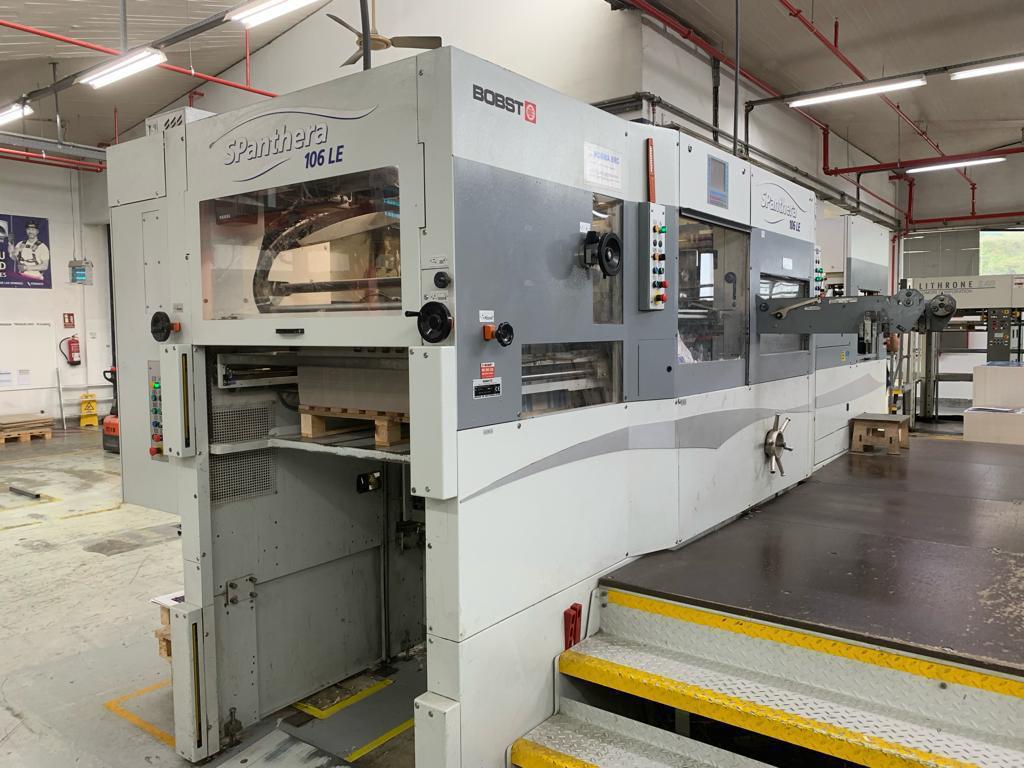

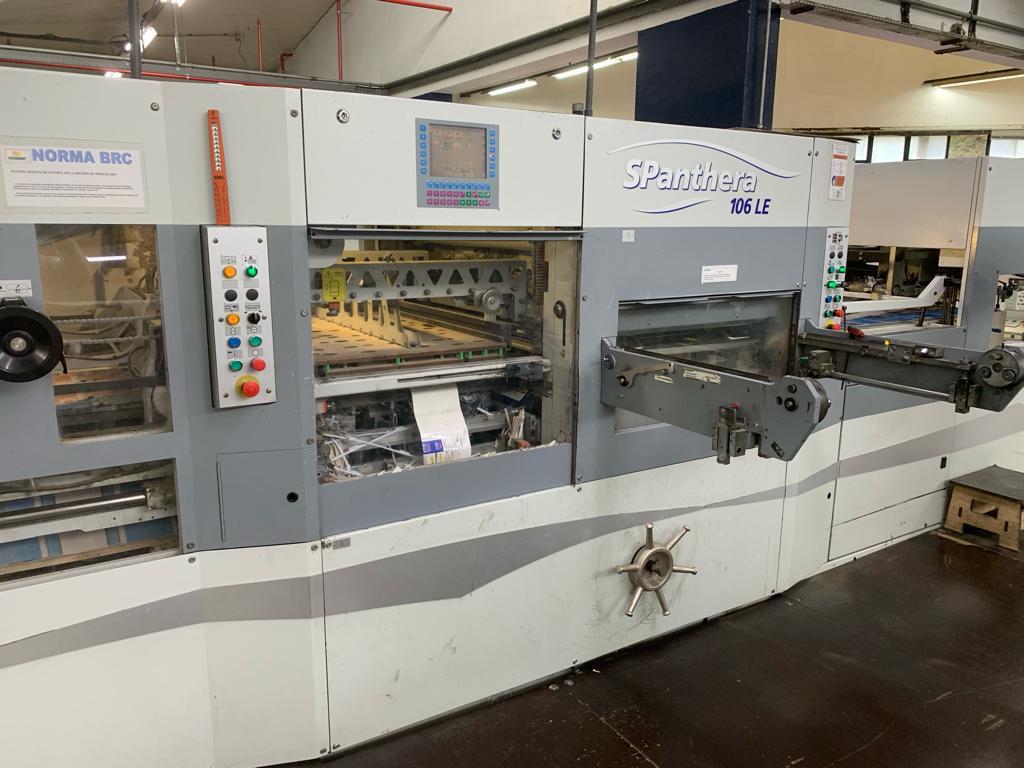

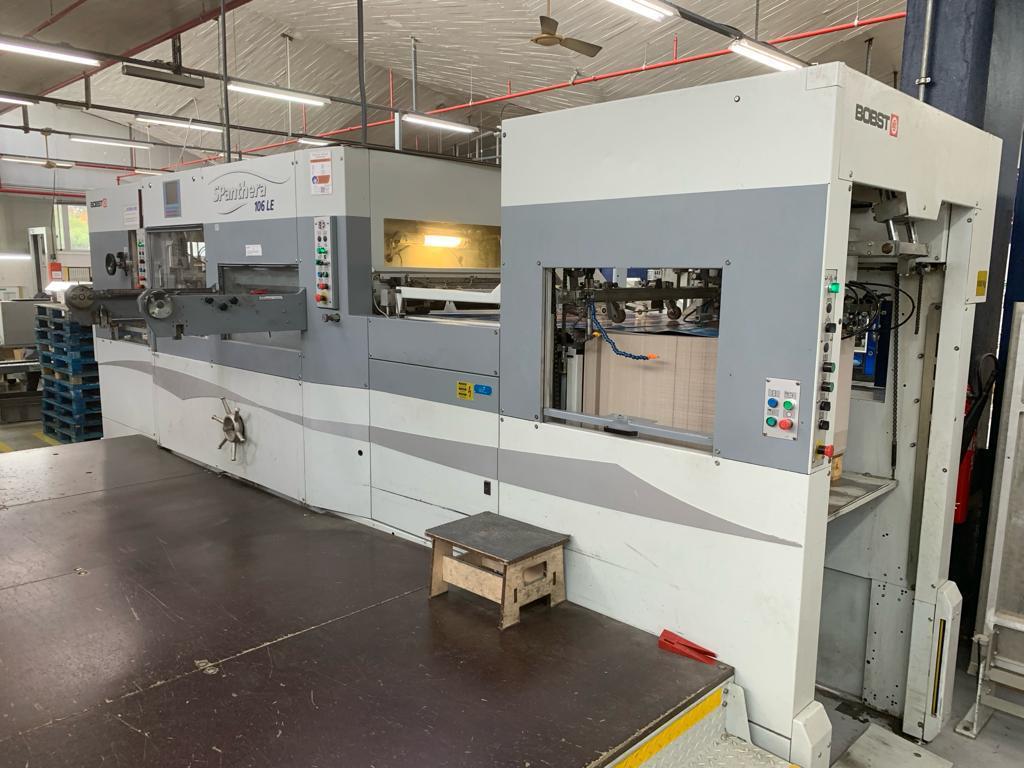

BOBST SPANTHERA 106 LE

BOBST SPANTHERA 106 LE
  • -Year: 2008
  • -23.415 working hours
  • – Optical Register Sheet Infeed System ORSIS (Optical Register Sheet Infeed synchronisation).
  •  Guarantees high production quality and allows sheets to be fed in evenly for all grammages.
  • feeding of the sheets for all grammages.
  • – Platen with camshaft drive.
  • – Machine compatible with HIGHWAY TDF-VIEW system.
  • – Centreline system for fast job changes.
  • – Electronic sheet flow control.
  • – Adjustable centring on the stripper.
  • – Control cabinet air conditioning.
  • – Several automated functions to assist the machine operator
  • operator:
  •  – Controlled machine stop after system error (allows the sheets in the machine  sheets in the machine without interruption).
  • – Feeding of a sheet from the feeder into the stripping station for control of the die-cutting / creasing.
  • – Feeding a sheet into the stripping station to check the tool position.
  • – Programmed stop of the machine for changing the equipment.
  • – Bobst-Electronic machine operating system C.U.B.E. ll. Control Unit Bobst Electronicwith colour screen.

If you want more info, please contact with us here

Category:

Description

BOBST SPANTHERA 106 LE
  • FEEDER
  • – The ORSIS optical infeed system includes:
  • – Independent feeder controlled by electric shaft.
  • – Optical side register control.
  • – Automatic lateral stack correction (+/- 40 mm) controlled by the optical side register, optical side register.
  • – Automatic synchronisation device for optimum positioning of the sheets  sheets to the front lays.
  • – Deceleration device with electronic control (3 speeds for feeding the sheets to the front lays).
  • – Stepless stroke of the pile support plate to maintain a constant pile height. pile height.
  • – Adjustable side blower .
  • – Suction head with multiple adjustment options.
  • FEEDING TABLE
  • – OPTICAL SIDE REGISTER CONTROL
  •  – Side register control, without sheet contact, with large correction
  •  correction range in both directions (+/- 10 mm).
  • – A camera aligns the sheets laterally according to the sheet edge or the print image.
  • – Allows the alignment of all materials (paper, solid board, laminated corrugated board).
  • – Coated with a stainless steel sheet, with antistatic effect. – Introduction on the feed table with side ramps.
  • 4  Individually adjustable front lays with sheet control during production. during production.
  • Control system by fibre optics
  • – Double sheet control without contact.
  • – Sheet hold-down device (guiding the sheets to the grippers).
  • – Upper feed table frame with manual lifting aid.
  • – Upper transport equipment for paper and cardboard.
  • 2 transport belts.
  • With lateral guide and automatic clamping system.
  • STANDING TILLE
  • – Movable platen with short stroke and cam drive.
  • Cam-controlled platen movement allows a sheet trasfer with low acceleration and low acceleration and deceleration.
  • Platen with constant parallelism over the entire pressure range.
  • – Upper platen with vacuum.
  • – Gripper reopening device.
  • – Automatic centring and locking of the closing frame and the base plate. and base plate.
  • – Adjustable centring for base plate (+/- 0.9 mm).
  • – Locking of the clamping frame against the upper platen.
  • – Measuring the punching force with tension gauge.
  • – Motorised adjustment of the punching force.
  • By push button.
  • – Support plate made of synthetic material.
  • 12 mm thick.
  • WASTE STRIPPING STATION
  • – Centre drawer frame with quick clamping.
  • – BSSR – Upper quick clamping frame.
  • Integrated quick-clamping device for a finished upper stripping tool.
  • stripping tool.
  • – Adjustable centring for the upper, middle and lower stripping tool. stripping tool.
  • 1 Fixing material for the upper stripping mould for quick clamping
  • (F-35)
  • Allows the attachment of a wood stripping mould in the upper quick clamping device integrated upper quick-clamping device.
  • 1 Fastening material for the stripping board on the centre frame with quick clamping (F-76) 1 Lower drawer frame (F-8)
  • 1 Lower stripping equipment (F-81)
  • Waste stripping equipment with support rods and telescopic pins.
  • Price: on request.
