Description

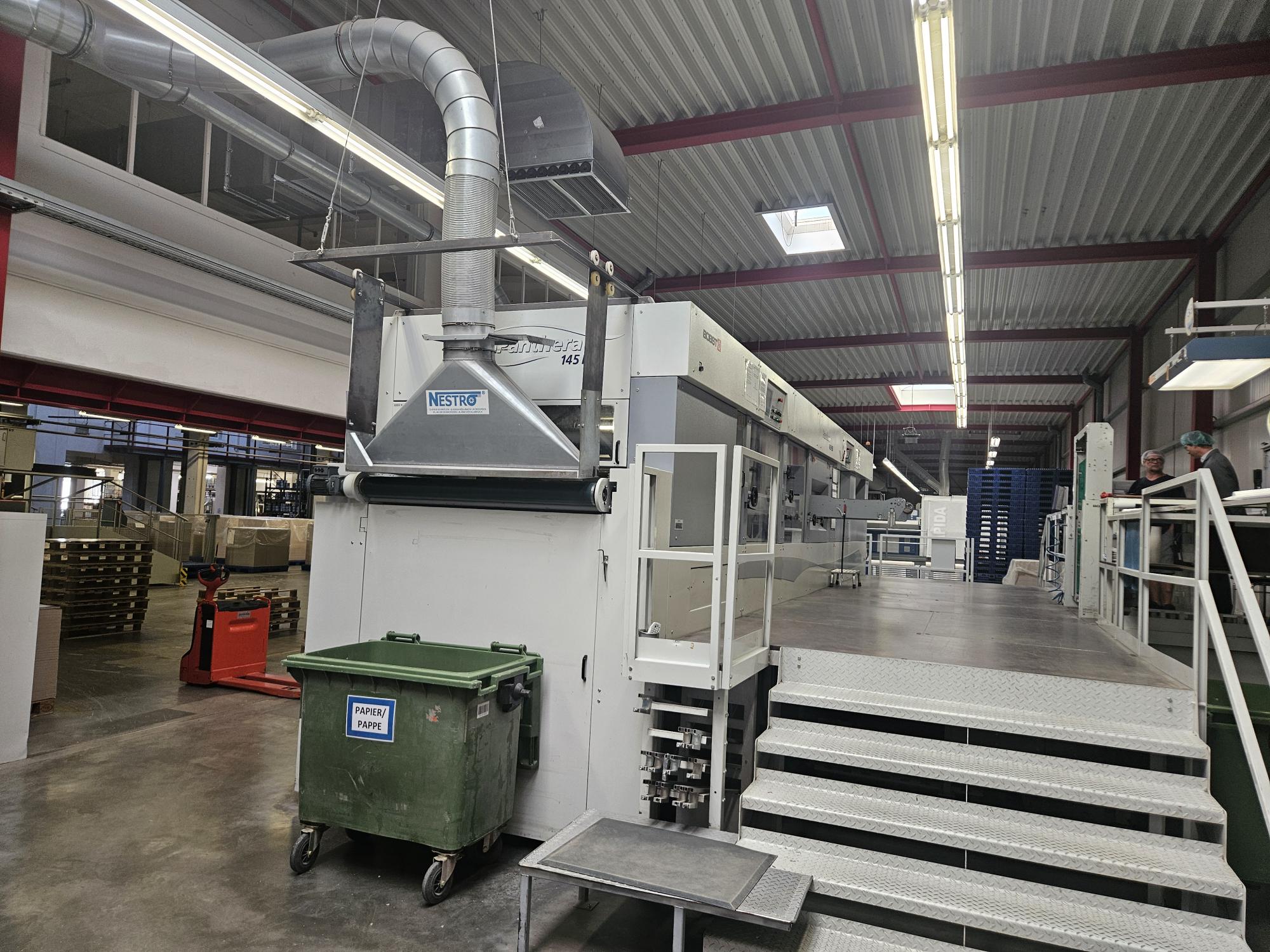

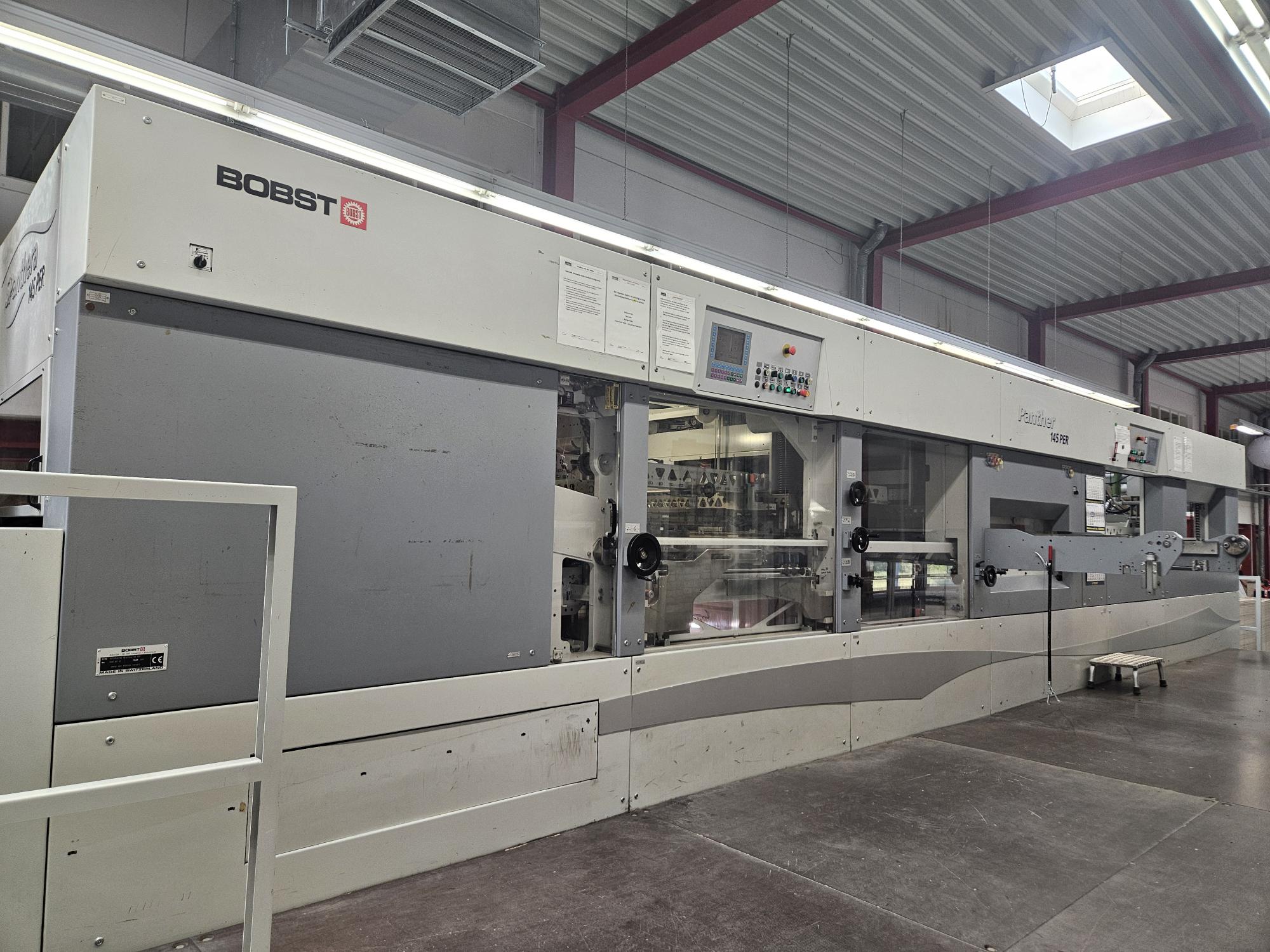

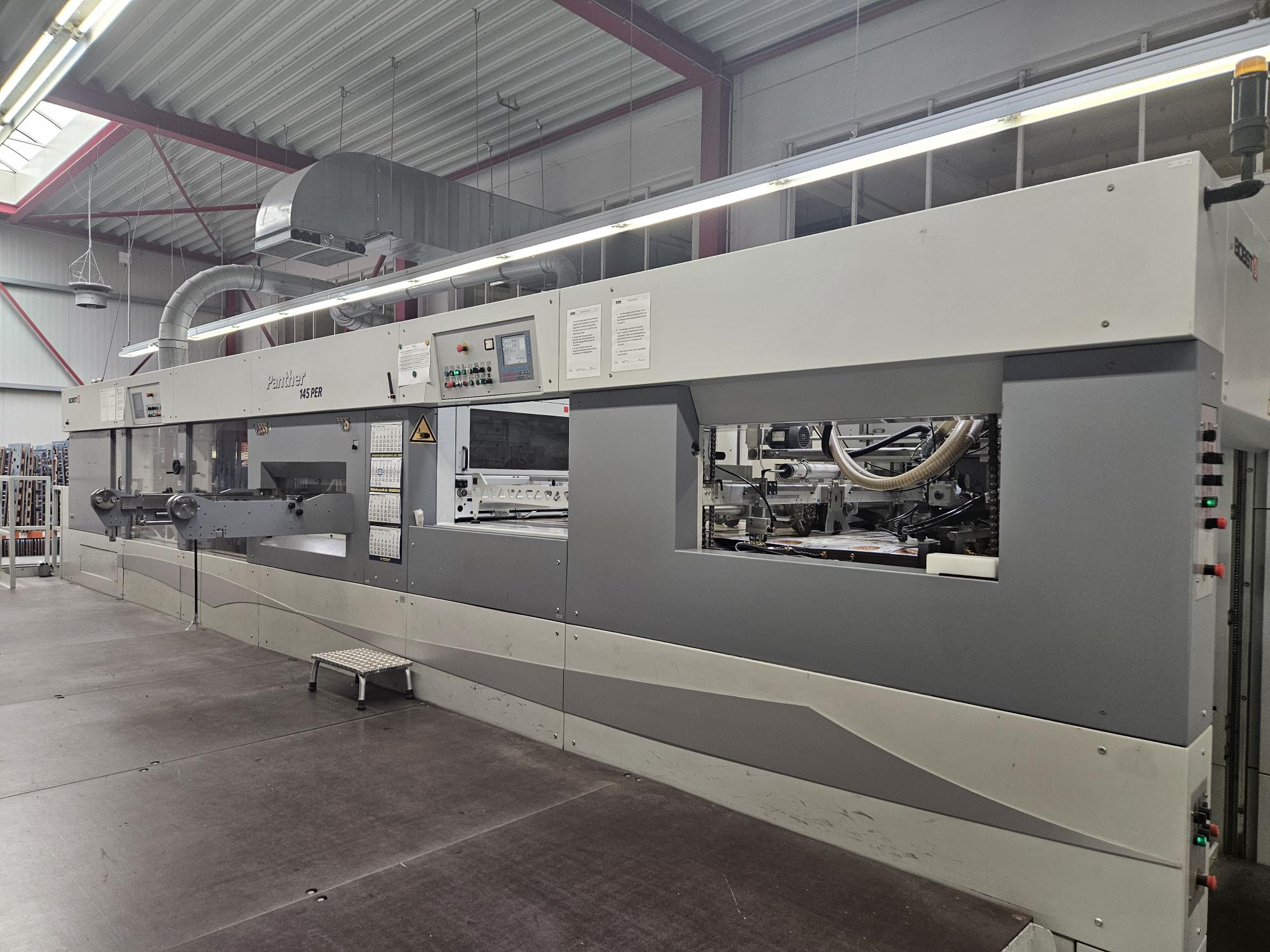

BOBST SPANTHERA 145 PER
Year of manufacture: 2005
Machine configuration
- B-23 Sheet braking device using the Bernoulli system at stripping station
- B-25 Sheet braking device using the Bernoulli system at the delivery station
- B-41 Additional “CUBE” control panel
- B-75 Cabinet for pumps

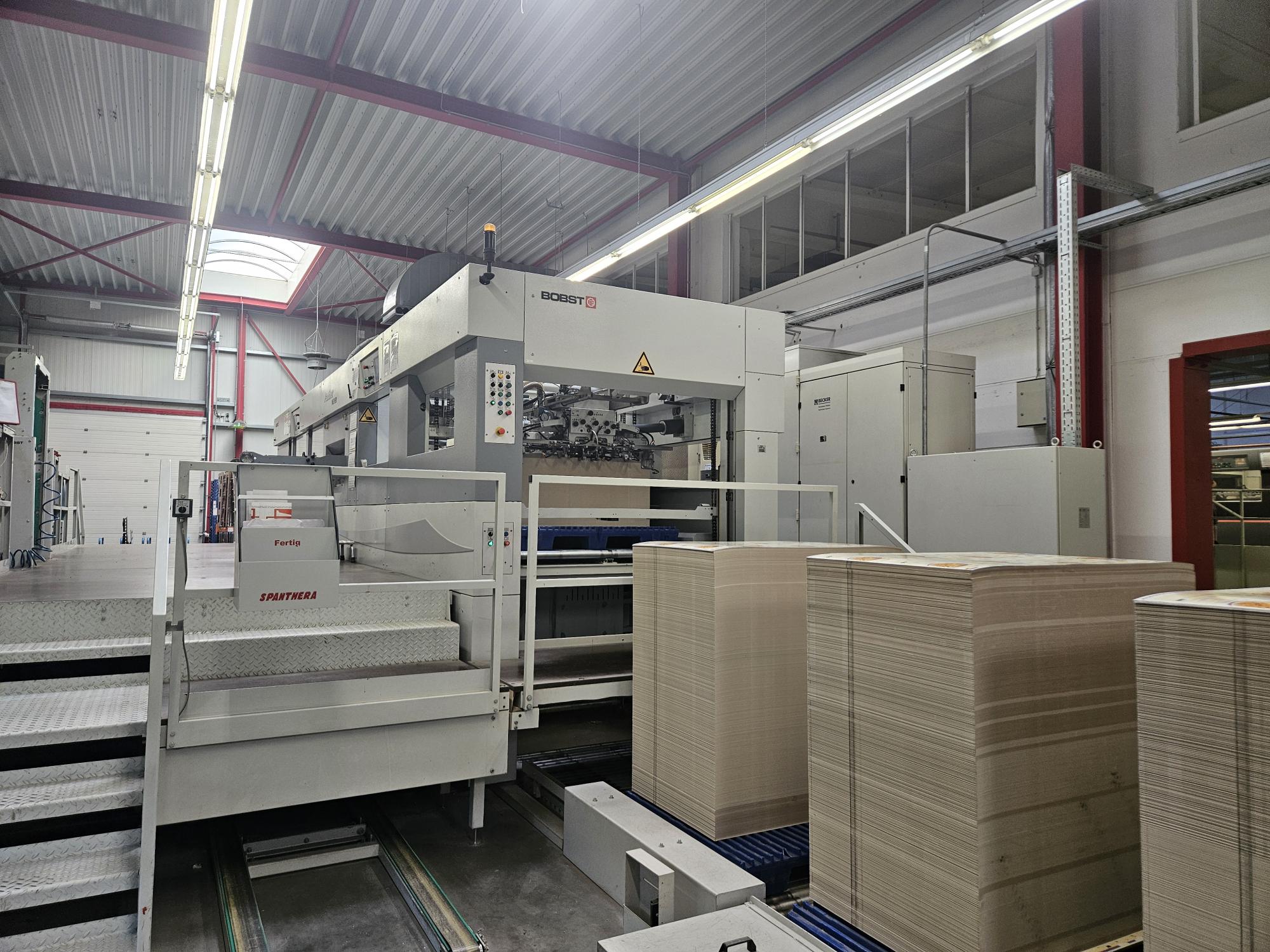

Feeder

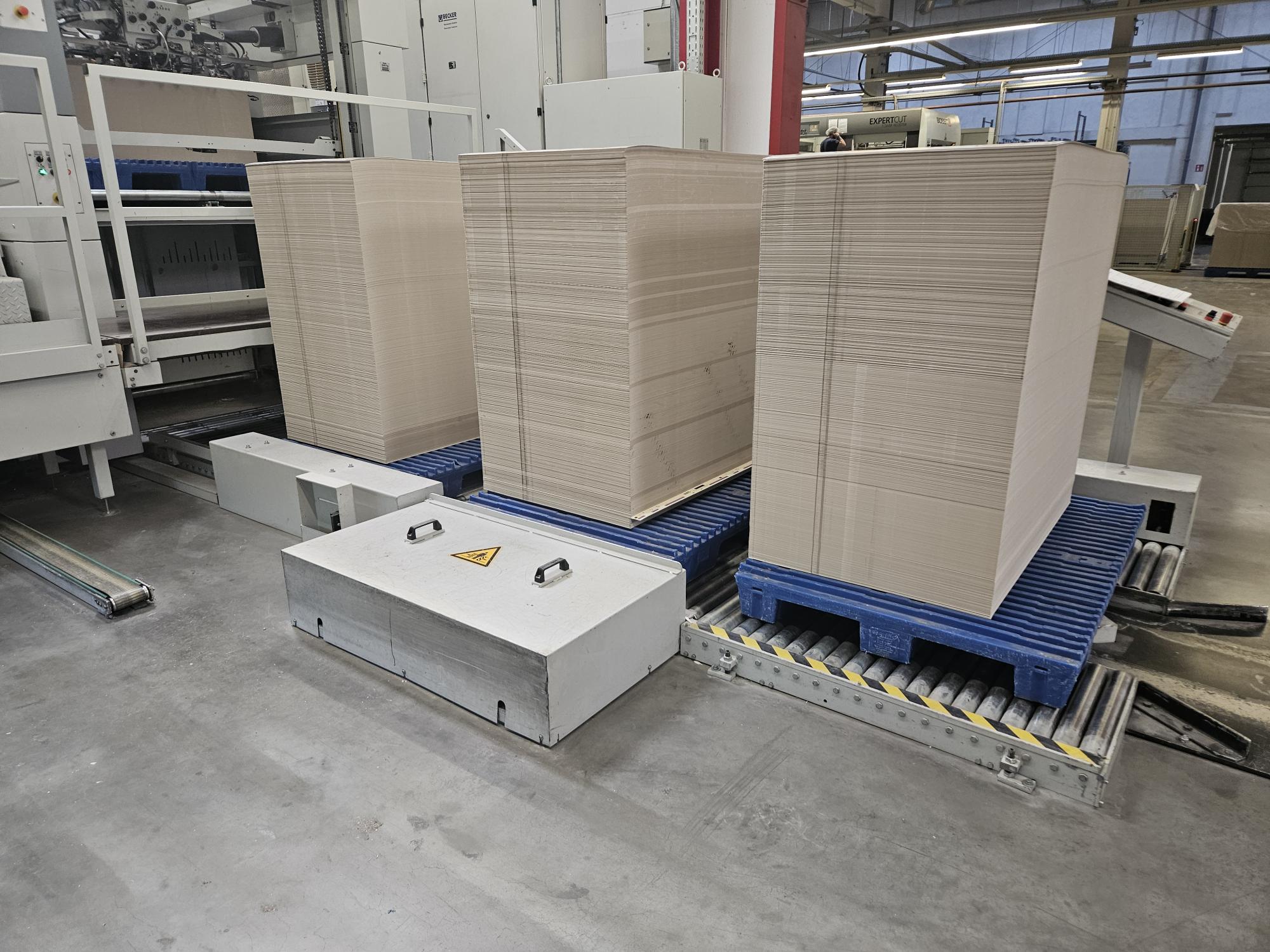

- C-18 Identification of the first and last sheets in the pile
- C-23 APT Feeder version “U” (special pallets needed)
- C-31 Automatic non-stop rack with lateral adjustment for APT (special pallets needed)
- C-81 Lengthwise motorized movement of the section unit
- C-82 Additions for the suction unit
Platen
- E-3 2x Upper chase with quick locking: fixed bottom plate
- E-11 Oil conditioning unit
Stripping station
- F-2 2x Upper pull-out frame
- F-8 2x Lower pull-out frame
- F-60 Gripper bar locking at stripping station
- F-69 Sheet travelling control photocells with external manual adjustment
Separation station
- H-7 Special non-stop rack
- H-21 2x Upper pull-out frame
- H-30 Positioning tool for non-stop bars at delivery
- H-5 2x Lower pull-out frame
- H-6 Universal lower tool
- H-61 Additional universal tool frame
- H-75 Control system of blanking
- H-78 Full sheet delivery system
Additional equipment
- M-5 Chase changer
Machine in very good condition and well equipped for high-performance die-cutting, stripping, and blanking production. Suitable for folding carton and packaging applications.
