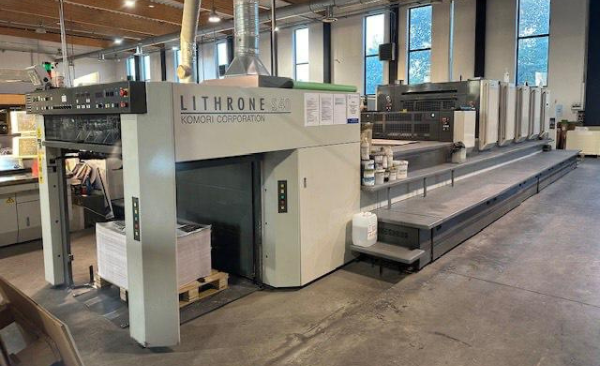

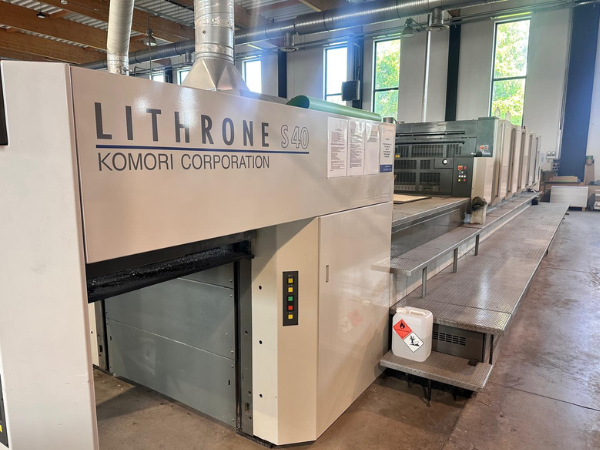

Komori Lithrone S-540 H + C

Year 2007
approx 87 mio impressionsControl and Monitoring Systems
•    Remote Quality Control System PQC-S (Print Quality Control System):
* Remote ink control
* Remote dampening control
* Remote register control:
o    Longitudinal (+/- 2 mm)
o    Lateral (+/- 3 mm)
Cylinder Control Parameters
•    Diagonal – plate (+/- 0.2 mm)
•    Remote cylinder skew control – at feeder (+/- 0.3 mm)
•    Remote cylinder stretch control – at feeder (0 – 0.6 mm)
•    Komori Management System – KMS 4
•    2x touchscreen control monitors
•    Advanced printing control system – Komori KHS
o    X-Rite IntelliTrax:
* Automatic spectrodensitometer
* Online spectrophotometric sheet control
* Printflow + Color Control Software
Production Process Automation
•    Automatic impression cylinder washing
•    Automatic inking unit washing
•    Automatic blanket cylinder washing
•    Preset for substrate thickness adjustment
•    Automatic Format Preset:
* Feeder head
* Side lay
* Brushes and rollers on delivery table
* Side air blower
* Jogging and braking
* Remote head and impression settings
Feeder
•    Stream feeder with 1150 mm pile height
•    Feeder head with lifting and forwarding suckers (2x)
•    Deionizing blower
•    Carton equipment
•    Suction belt feed table
•    Electronic side lay and front lay control
•    Front lay bar skew adjustment
•    Ultrasonic double-sheet detector
•    Non-stop feeding function
•    Electronic pile height control
•    Pneumatic side lay
Inking Unit
•    Precise ink feed adjustment (500 ink key opening steps)
•    Inking unit with 20 rollers, including 4 form rollers of various diameters
•    Adjustable ductor dwell timing
•    Remote inking zone control from PQC-S console
•    Separate vibrator drive
•    Ink vibrator cooling system
•    Remote axial roller movement adjustment
•    Option to disengage drive of first and last unit
KOMORIMATIC Dampening Unit
•    Continuous dampening – suitable for alcohol and alcohol-free printing
•    Oscillating distributing roller prevents banding
•    Reduced feed roller speed
•    Pneumatic engagement/disengagement from console
•    Dampening solution level sensor
Coating Unit
•    Suitable for aqueous and UV coatings
•    Remote register and substrate thickness adjustment
•    Special shadowless grippers
•    Extended delivery: 2.00 m
•    Compatible with both rubber blankets and photopolymer plates
•    Chambered doctor blade system TRESU
Delivery
•    High pile delivery with 1150 mm stack height
•    Sheet decurler
•    Deionizing bar
•    Automatic lubrication of delivery chains
•    Production counter
•    Mechanical pull-out of sample sheet
•    Grafix Megatronic powder spray device:
* Automatic speed compensation
* Powder level monitoring
•    Engagement/disengagement of dampening and inking rollers
Auxiliary Equipment
•    Plate punch: BEIL Registersysteme GMBH 830-S-H-Manual
•    Plate bender
Cooling and Circulation Systems
•    Dampening solution cooling: Technotrans Alpha.d 60L-5 Combicontrol 2.5 aquados.a 5
•    Ink vibrator circulation and cooling: Technotrans Alpha.t 120 L-5
•    IR dryer: Baldwin IVT Graphiset4 (48 kW)
•    Dispersion coating circulation: Technotrans Alpha v. with electric pumps
Additional Equipment
•    Anilox roller: APEX – 120 l/cm
•    Feeder pump: DVT 3.140 – Becker
•    Transformer: 150 kVA – SBA
•    Filters: MIF 3340 EMC – Deltron Radikor
•    PQC console lighting – Just
•    5 sets of inking and dampening rollers – Westland/Böttcher
•    Spare dampening rollers for all units
•    Spare inking roller cores
Optional Equipment
•    Data converter: CIP ¾
•    Compressor set: EPC 630-250 – Gietart/Kaeser

>5 colors + Varnish
Year 2007
Hybrid Rollers (can print with uv ink or without)
Max Size 72×103 cm
Approx 100 mio impressions
H model
PQC console
KMS-IV Komori Management System
KHS Komori High Speed Inking system
Full Automatic Plate Changers
AMR – sheet size and thickness pre-sets
PDCS-II, Skeleton cylinders
ABW – Automatic Blanket Washers
AIRC – Automatic Ink Roller Cleaners
AICC – Automatic Impression Cylinder Cleaners
De-Clutching of ink rollers in 1st and 5th unit
Anilox coater
Technotrans  refrigerator
Ink Temperature control and water circulation control,
IR Dryer
Baldwin UV LED lamp in delivery
Powder sprays
Manuals and Standad Tools
>5 colors + Varnish
Year 2007
Hybrid Rollers (can print with uv ink or without)
Max Size 72×103 cm
Approx 100 mio impressions
H model
PQC console
KMS-IV Komori Management System
KHS Komori High Speed Inking system
Full Automatic Plate Changers
AMR – sheet size and thickness pre-sets
PDCS-II, Skeleton cylinders
ABW – Automatic Blanket Washers
AIRC – Automatic Ink Roller Cleaners
AICC – Automatic Impression Cylinder Cleaners
De-Clutching of ink rollers in 1st and 5th unit
Anilox coater
Technotrans  refrigerator
Ink Temperature control and water circulation control,
IR Dryer
Baldwin UV LED lamp in delivery
Powder sprays
Manuals and Standad Tools
>5 colors + Varnish
Year 2007
Hybrid Rollers (can print with uv ink or without)
Max Size 72×103 cm
Approx 100 mio impressions
H model
PQC console
KMS-IV Komori Management System
KHS Komori High Speed Inking system
Full Automatic Plate Changers
AMR – sheet size and thickness pre-sets
PDCS-II, Skeleton cylinders
ABW – Automatic Blanket Washers
AIRC – Automatic Ink Roller Cleaners
AICC – Automatic Impression Cylinder Cleaners
De-Clutching of ink rollers in 1st and 5th unit
Anilox coater
Technotrans  refrigerator
Ink Temperature control and water circulation control,
IR Dryer
Baldwin UV LED lamp in delivery
Powder sprays
Manuals and Standad Tools
