MAN ROLAND R 705 3B EVOLUTION LED UV

MAN ROLAND R 705 3B EVOLUTION LED UV

Year: 2016

114 millions impressions.
Configuration: 5 Colours – Straight 5/0
Conventional Printing: Yes
LED UV Printing: YesTechnical Specifications
Maximum sheet size: 740 × 1,040 mm
Minimum sheet size: 340 × 480 mm
Maximum printing area: 720 × 1,030 mm
Paper thickness: 0.05 – 1.00 mm
Maximum production speed: 16,000 sheets/hour
Number of printing units: 5
Printing configuration: 5/0 Straight
Blanket size: 910 × 1,060 mm

Plate Changing & Makeready

Full Automatic Plate Change
Automatic plate loading
Multi-washing during plate changing
Simultaneous washing and plate-changing functions
Automatic blanket washing
Automatic impression cylinder washing
Automatic ink roller washing

Colour & Press Control

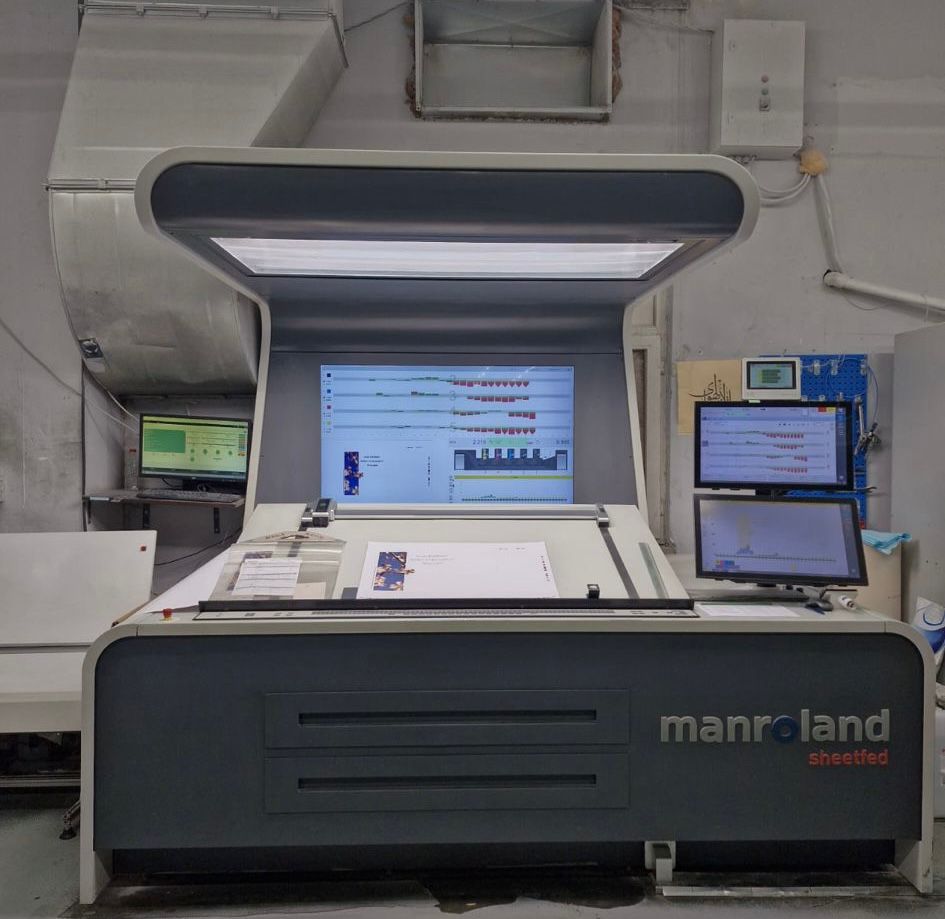

Wallscreen operating console
Inline ColorPilot
Remote press control
Automatic colour control
High-specification Manroland Evolution operating system

Dampening / Temperature Control

Technotrans Beta C
Water-cooled temperature control system
Mixed ink roller configuration

Drying System

IR Dryer
GEW LED UV system
GEW RHINO Power Electronics
GEW LEO-105(75)-2
GEW system manufactured WK48/2021
Power supply: 22.0 kVA
380–480 V / 50–60 Hz

LED UV Configuration

1 LED position between printing units 1–2
1 LED position between printing units 4–5
2 LED positions at the end of the press
2 movable LED lampheads
Lampheads can be moved between the four available LED positions

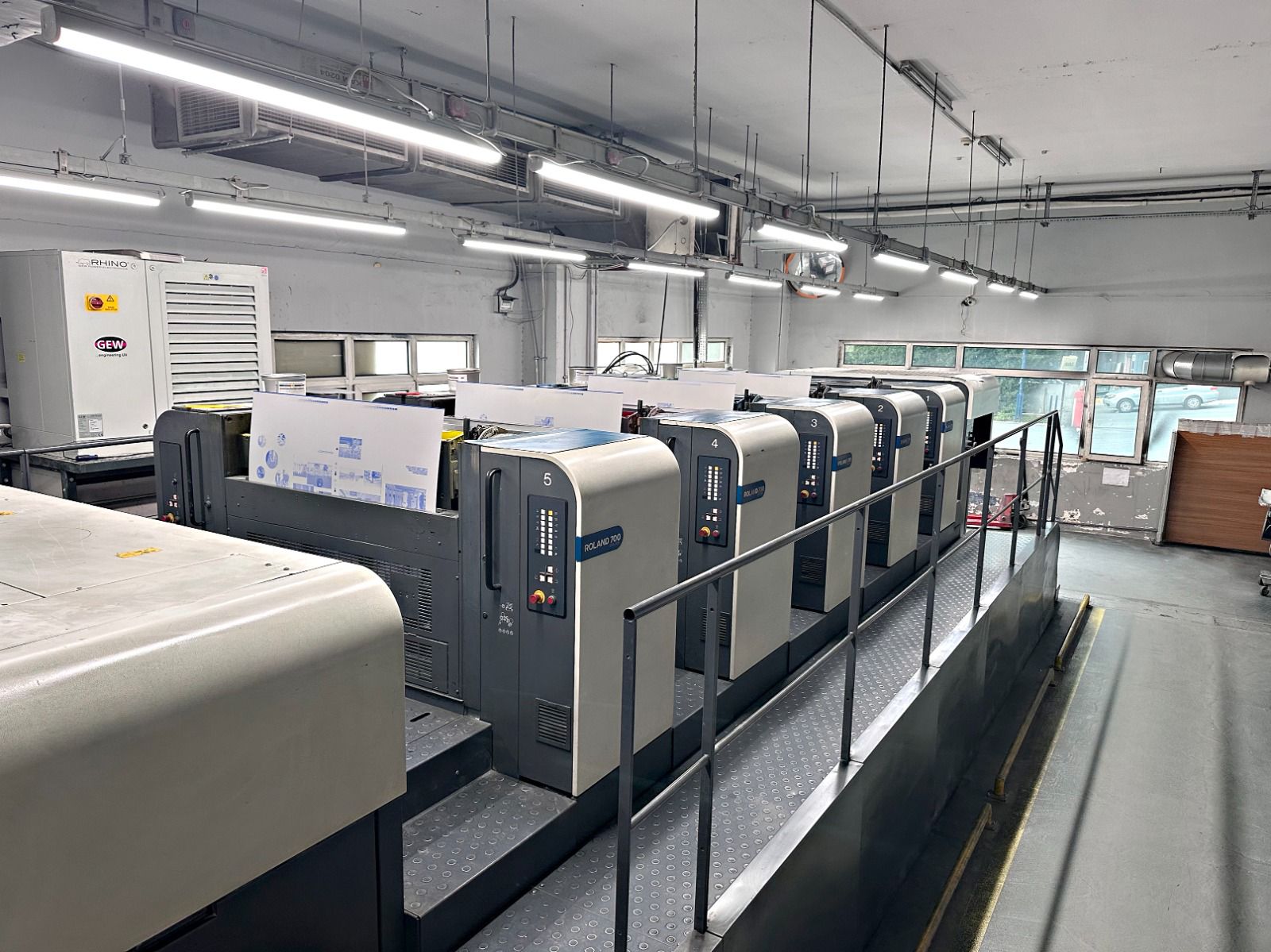

Machine Configuration

The machine is equipped with five conventional offset printing units combined with LED UV technology, allowing both conventional and LED UV production.
