Description

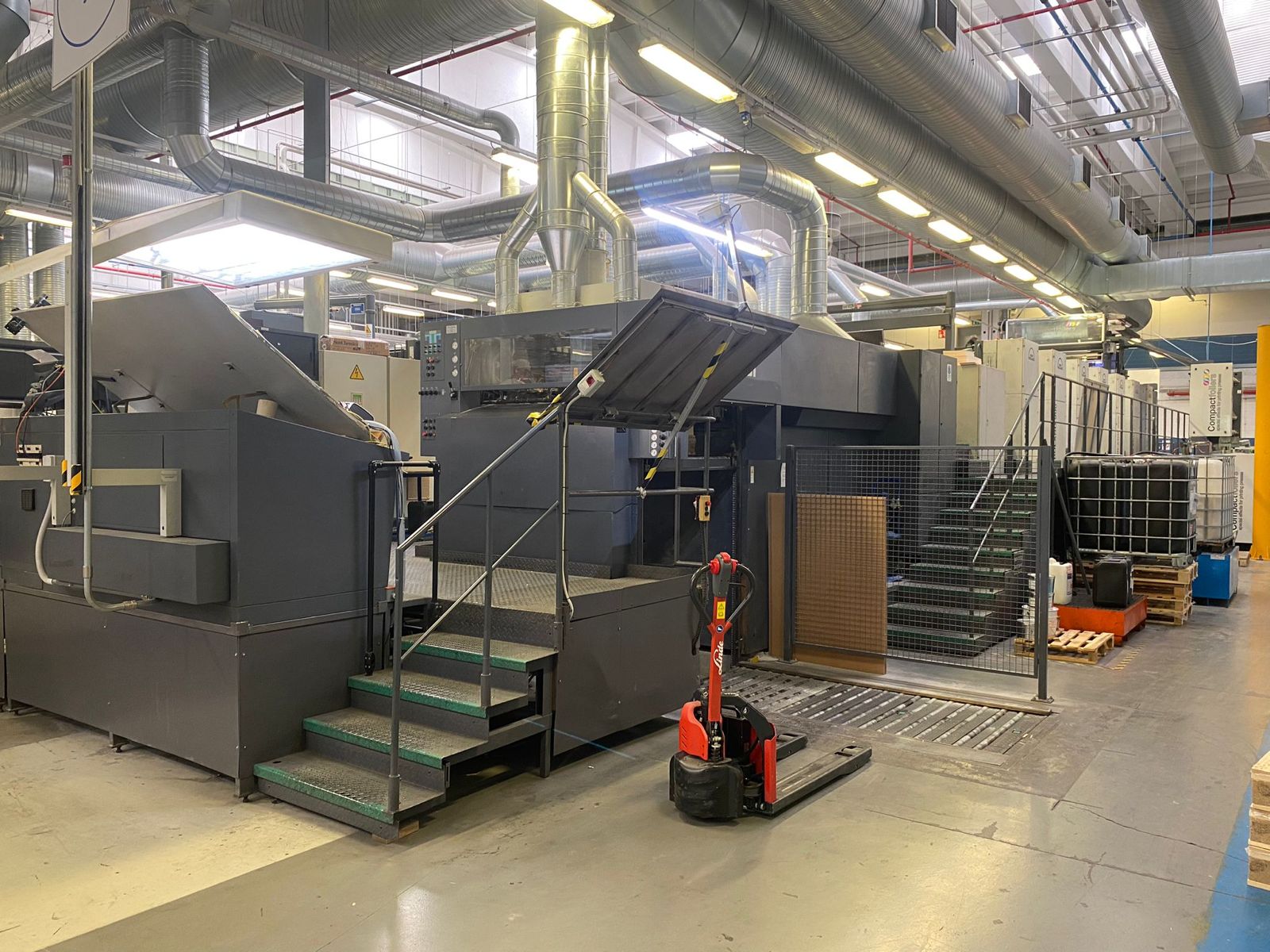

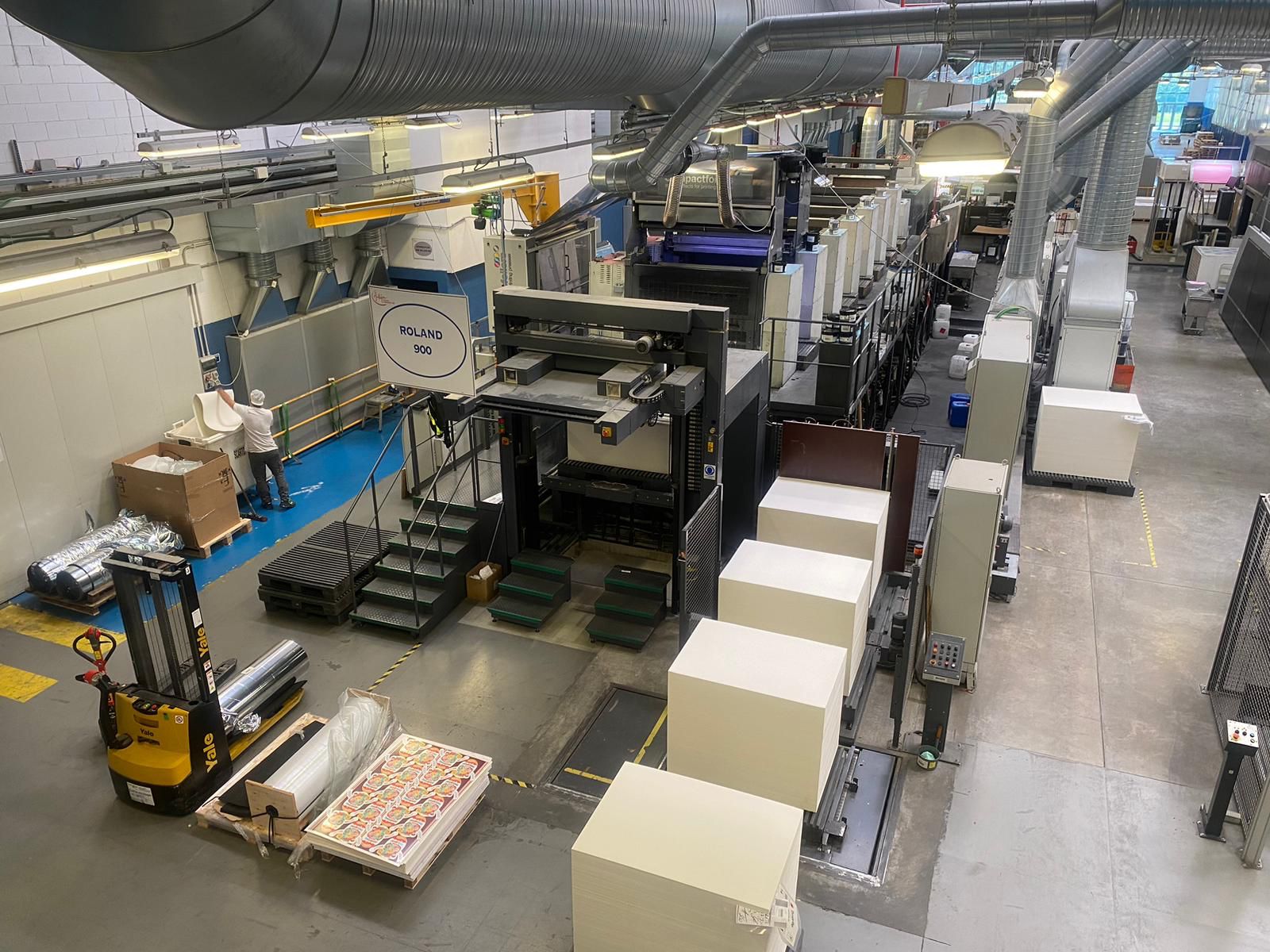

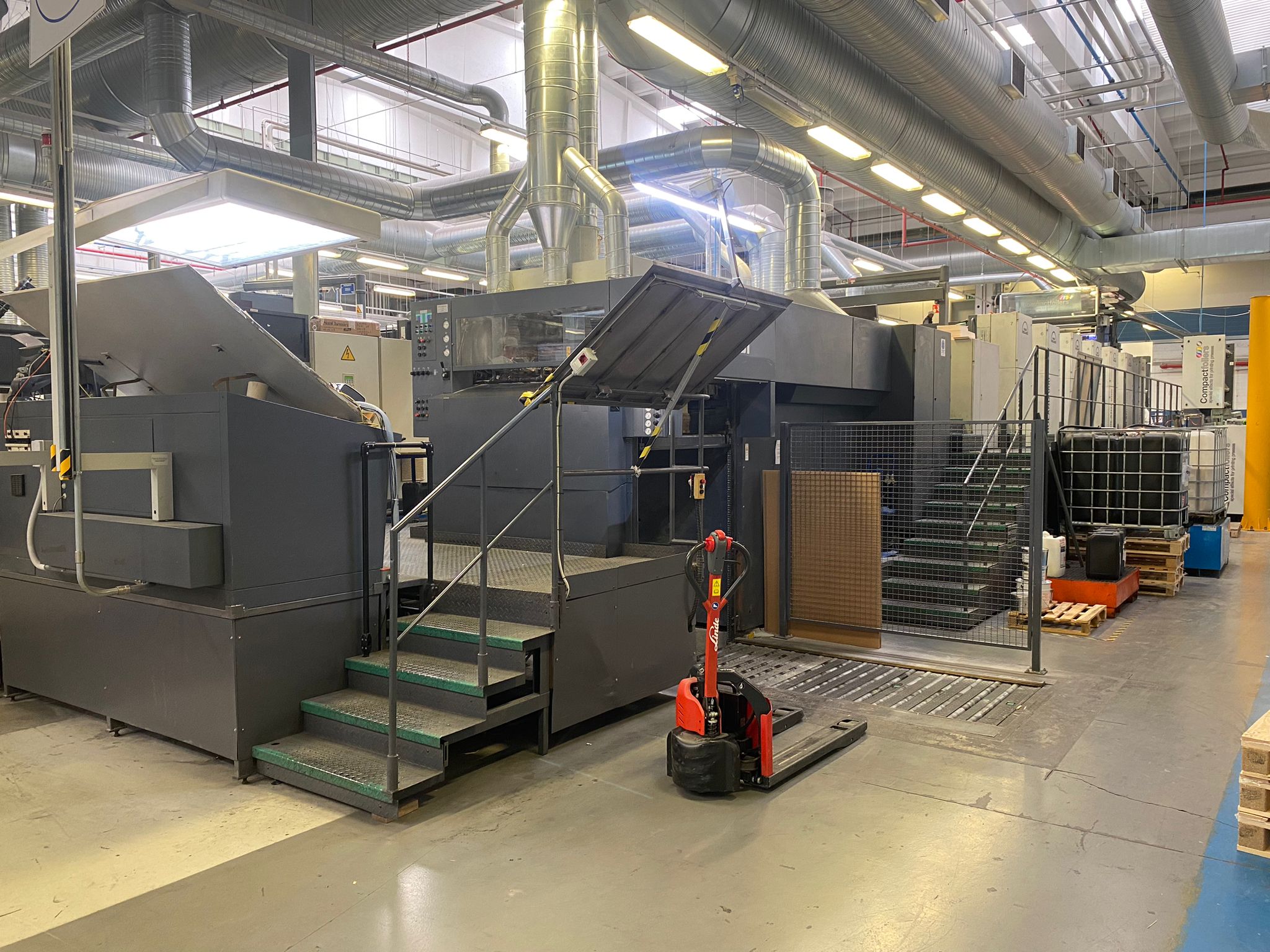

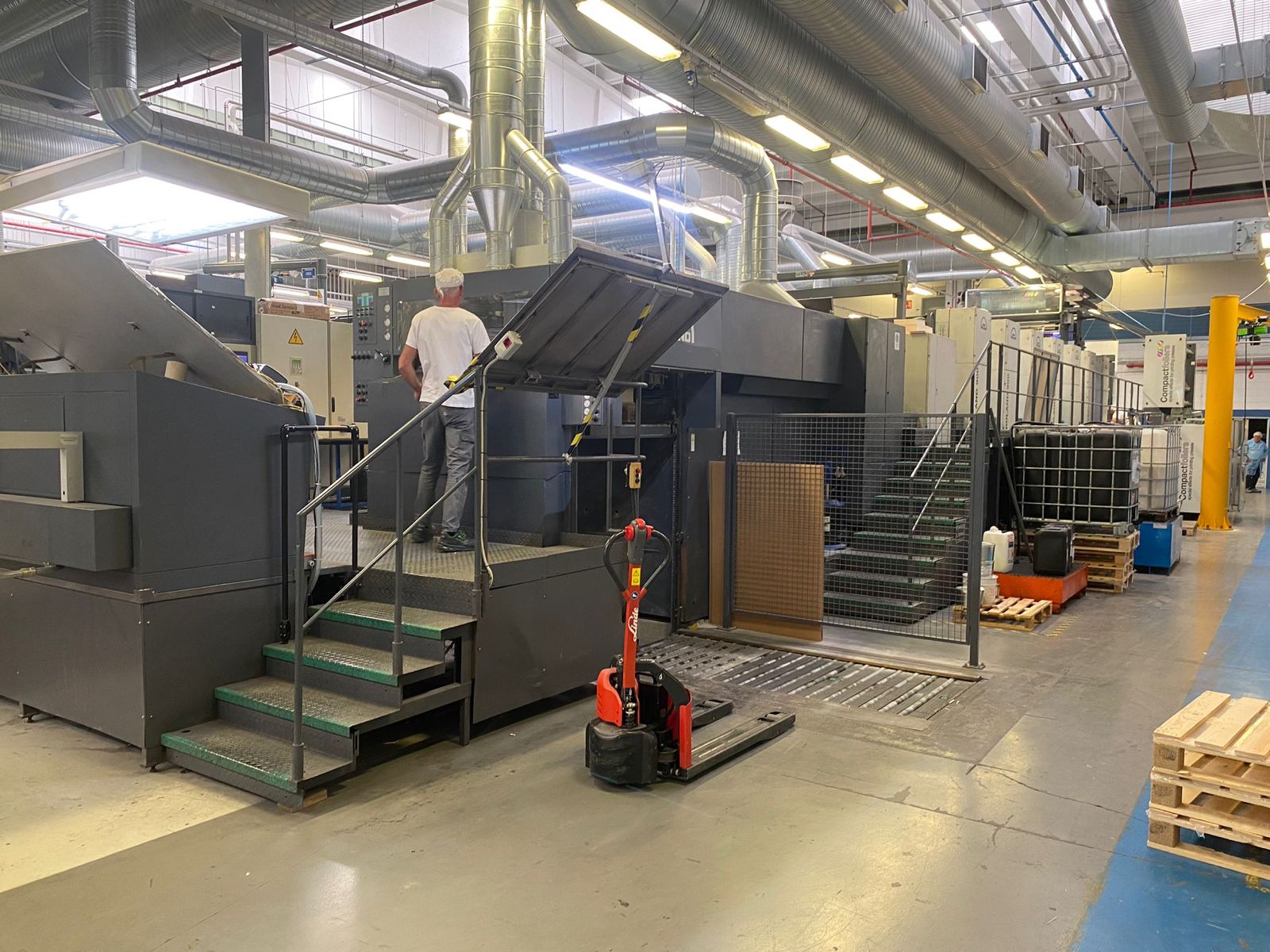

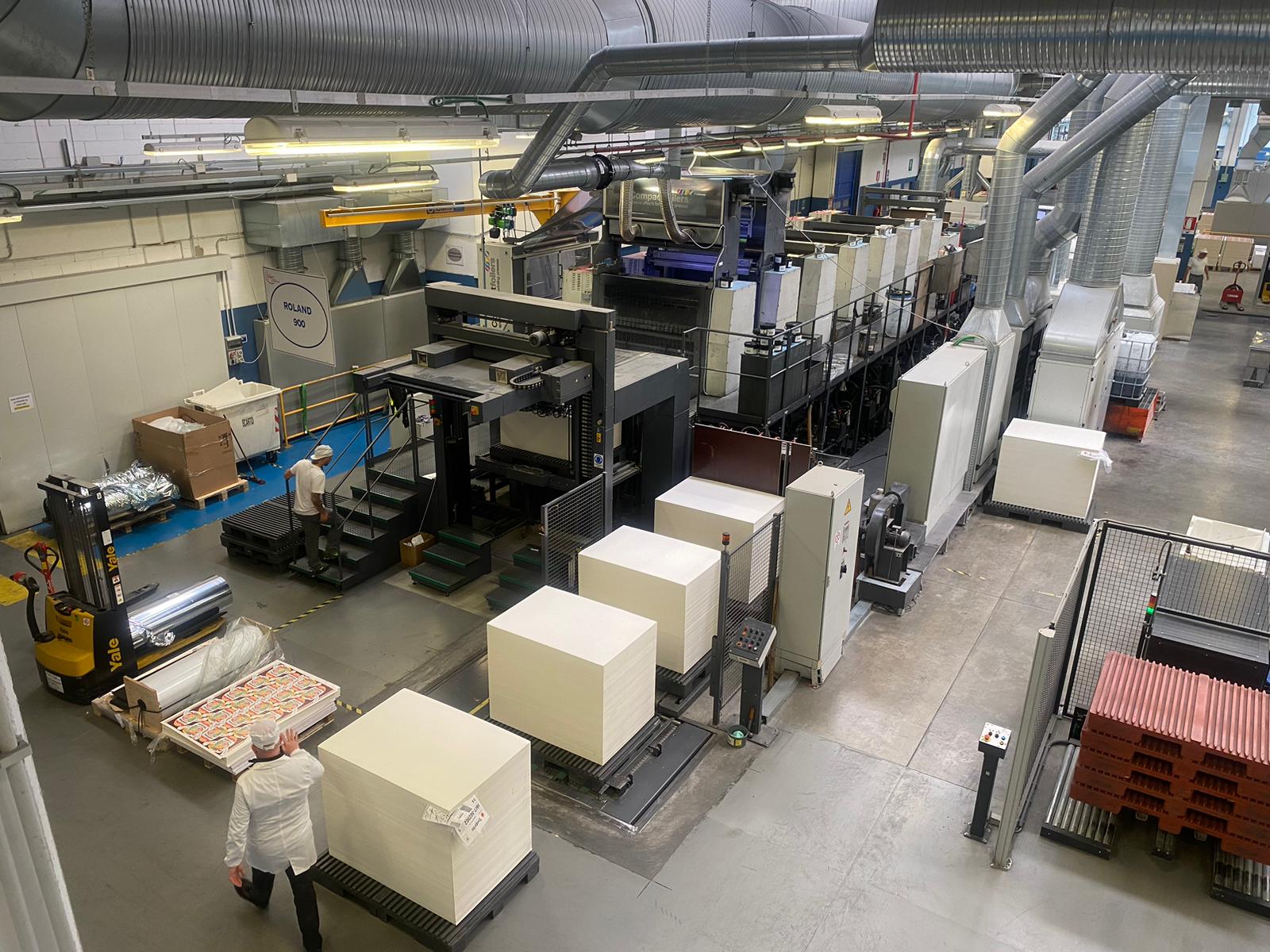

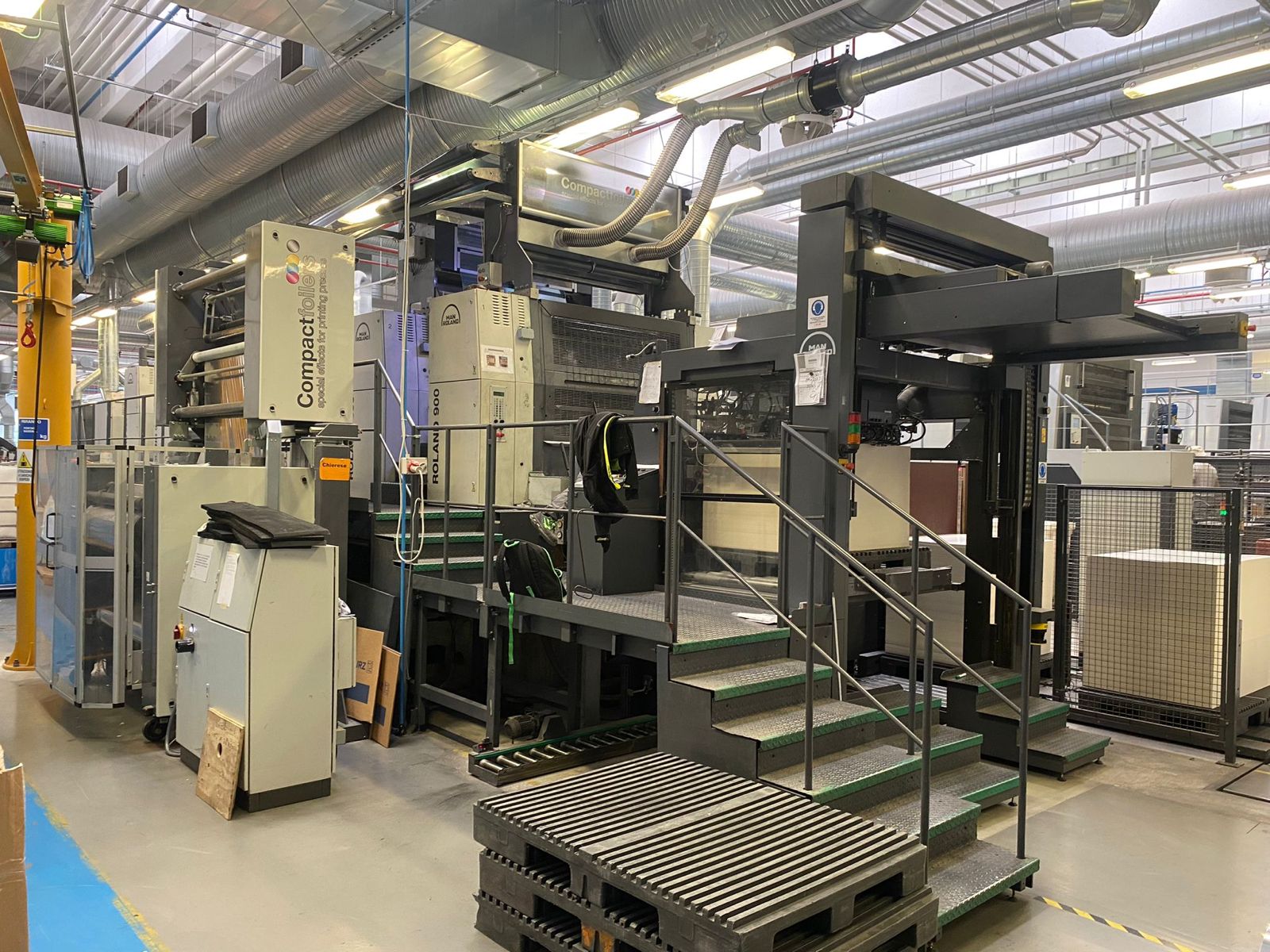

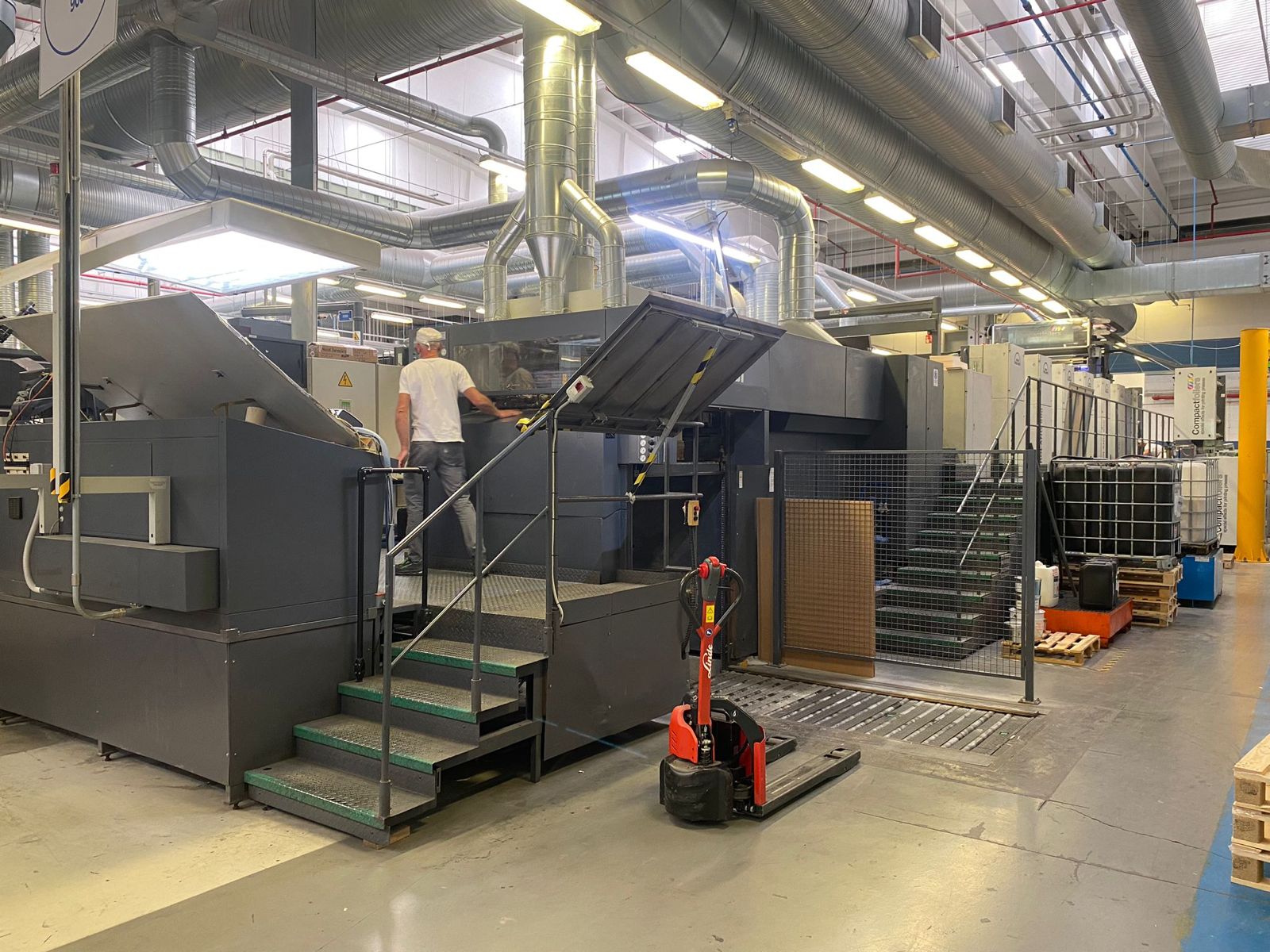

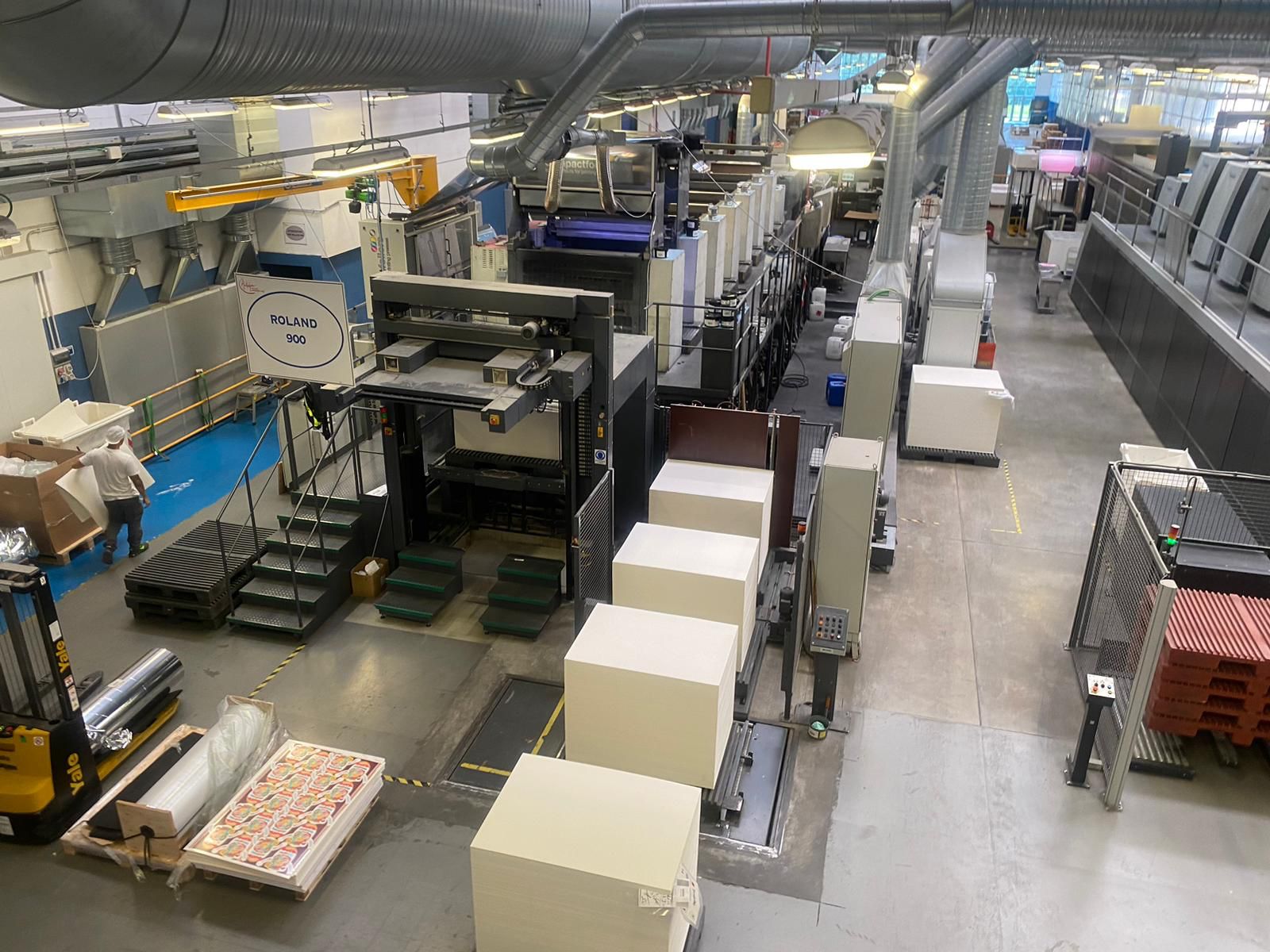

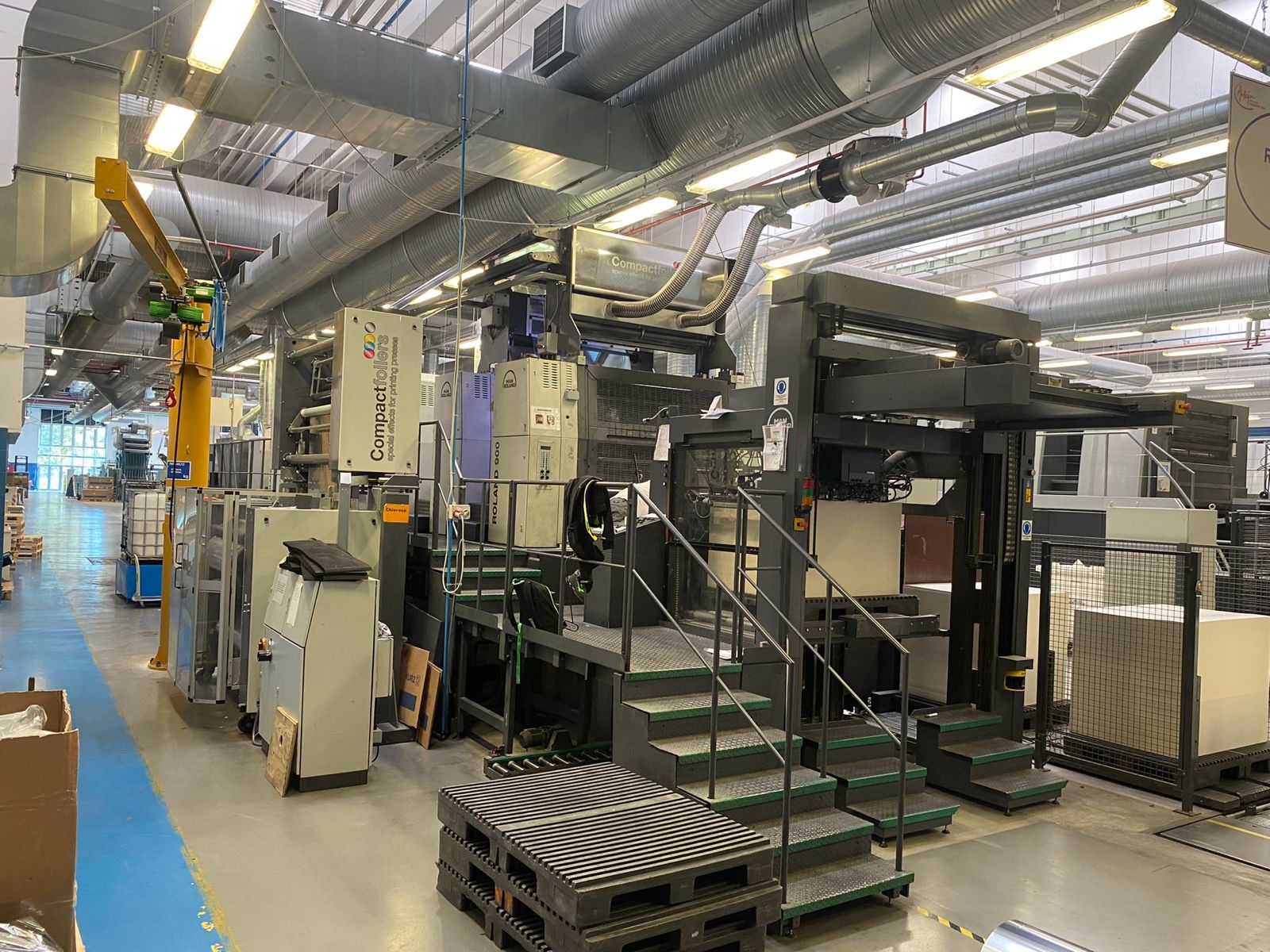

MAN ROLAND R 907-6+ LV + FOIL

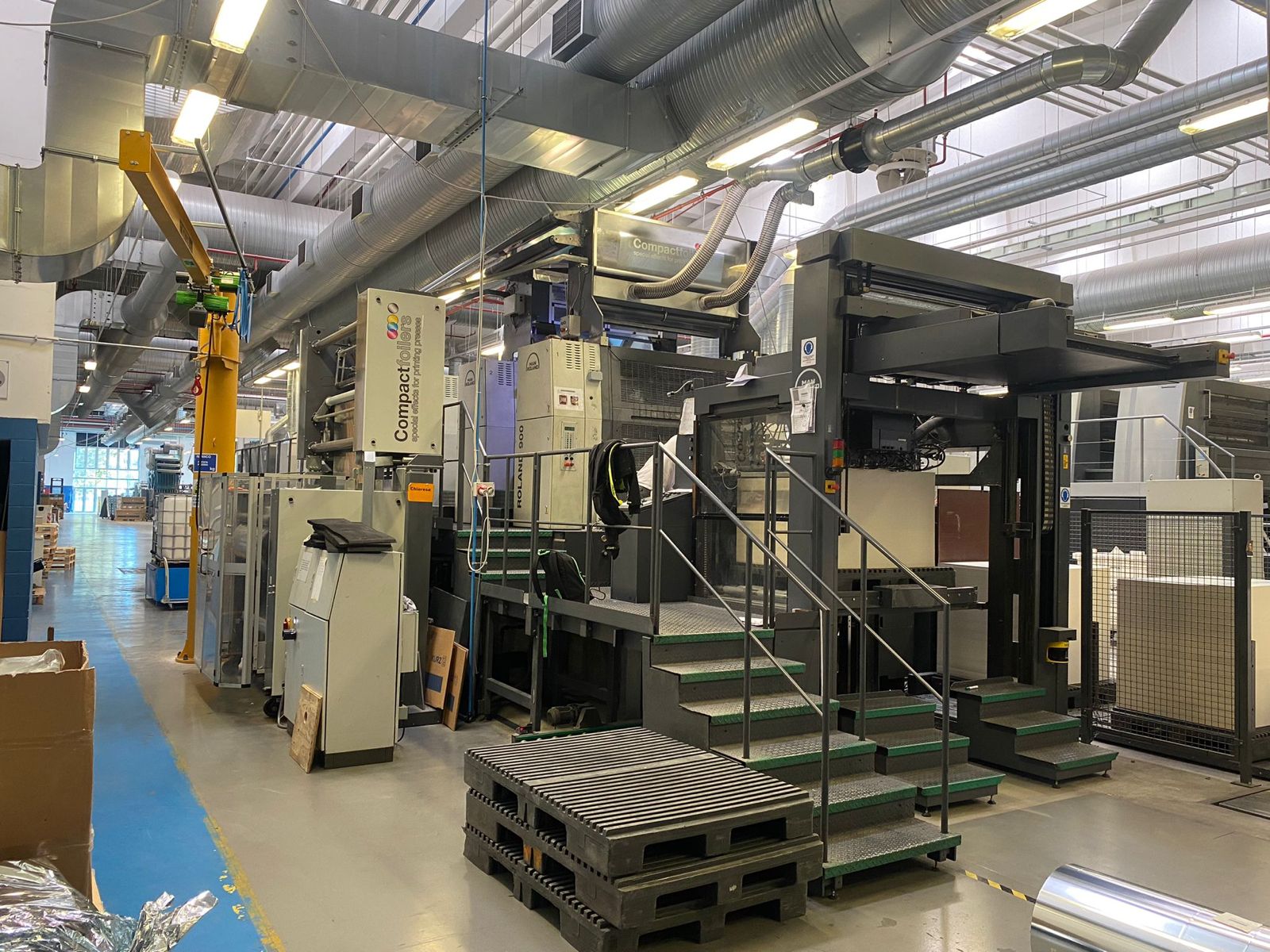

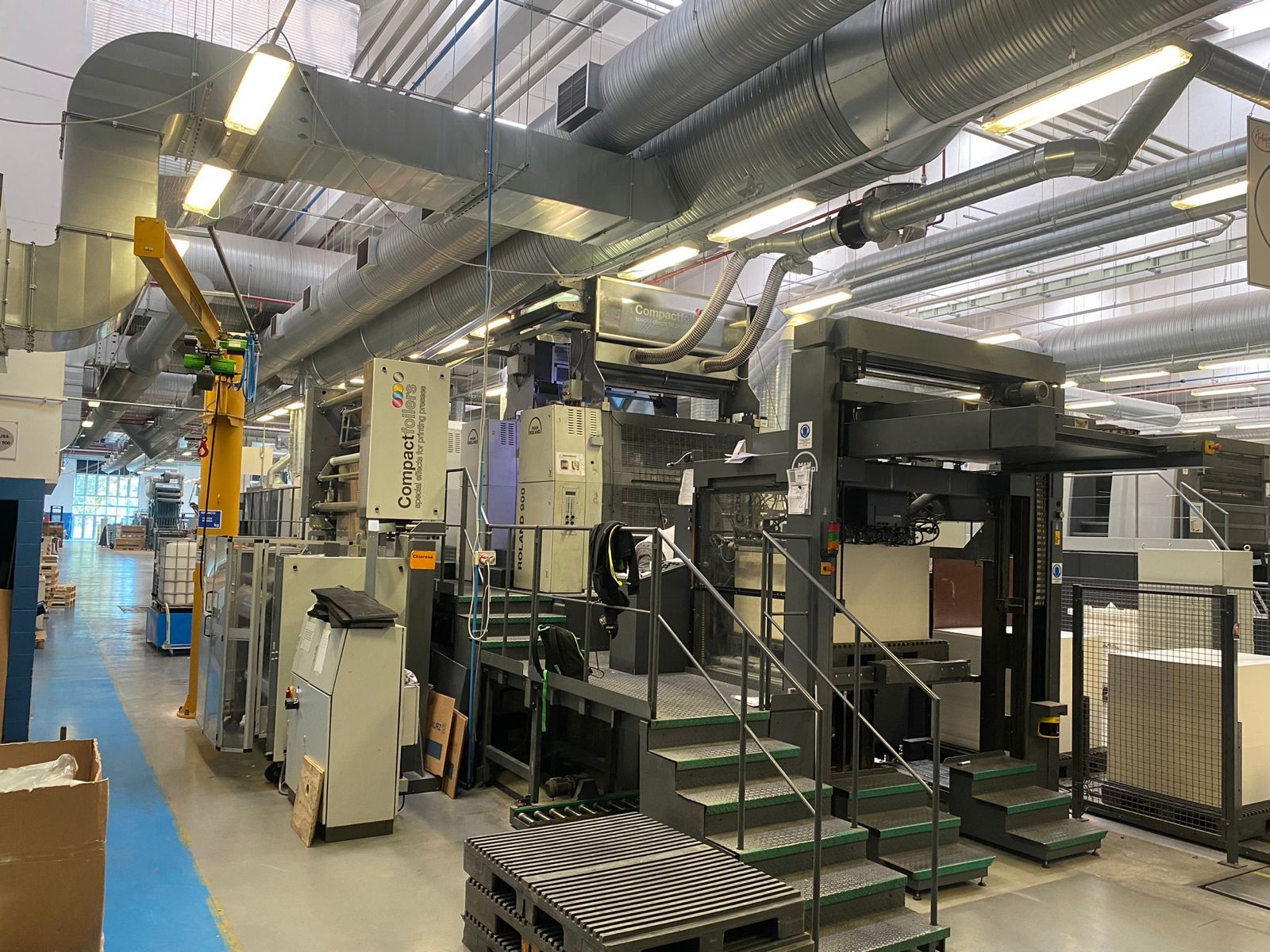

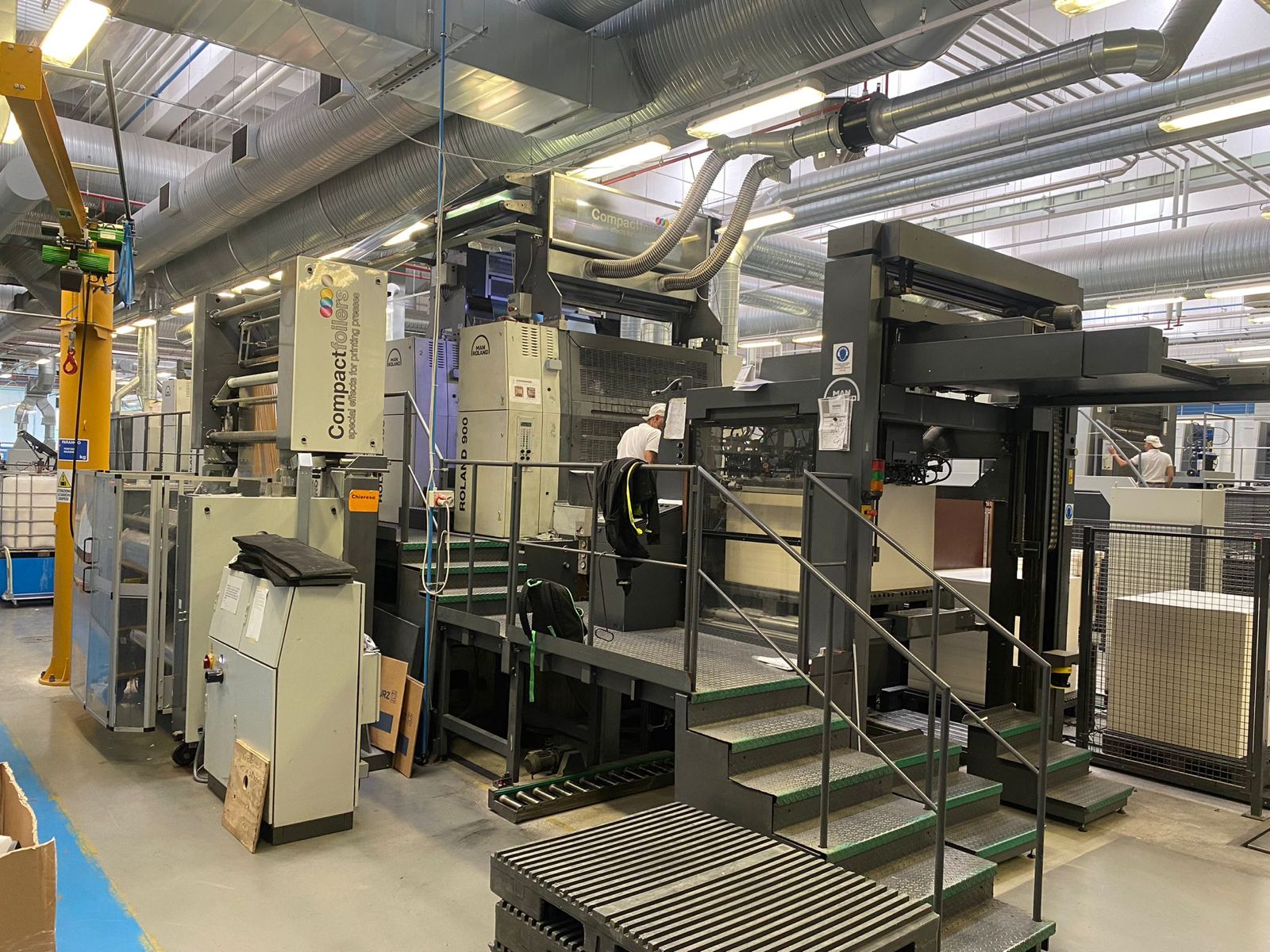

- 2016 Compact Foilers Unit for Cold Foil Application.
- Year: 2003
- Impressions: 200 million
- Configuration: 7 colors + coater
- Maximum sheet size: 1,020 x 1,420 mm
- Minimum sheet size: 600 x 850 mm
- Complete machine newly built with standard accessories
- Feeder logistics system with waiting capacity for 2 pallets in addition to processing time
- Aupasys type 6M pile turner
- 25 special pallets for feeder logistics
- Automatic Non-Stop feeder system
- Antistatic bars in feeder for plastic materials
- Ion or Vac Oxy Dry suction device
- Inking temperature control including cooler
- Automatic brush washing device for printing cylinders
- First printing unit with bivalent rollers
- Six subsequent units with conventional rollers
- Separate containers for washing liquids
- Predisposition for 667 mm elevation
- Predisposition for interdeck UV dryers between printing units
- Coating unit with doctor blade system and ceramic anilox roller (capacity to be defined)
- Delivery extension of 2,477 mm
- Predisposition for IR/hot air dryer installation
- Remote axial/circumferential register control
- Diagonal register on Transferter
- Quick bar closure
- Brush blanket washing system
- Blowing device for impression cylinders
- Roller change lifting device
- Motorized printing pressure adjustment
- Additional anilox roller
- Automatic brush washing device for coating unit cylinders
- Automatic Non-Stop delivery system
- Quick Change Coating Unit system for fast coating changes
- VariAir system
- Delivery logistics pallets
- Set of spare rollers: 1 bivalent rubber-coated unit, 4 inking rollers and 1 conventional take-up roller
- PrePress Link software
- JobPilot software
- Network server software (network connection and hardware costs to be borne by the customer)
- Print monitor
- JobCard Drive with 100 job cards
- Antistatic bars in delivery
- 2 interdeck UV lamps (positionable between units)
- 1 IR/air/UV dryer after coating unit
- Machine running — available immediately
