Description

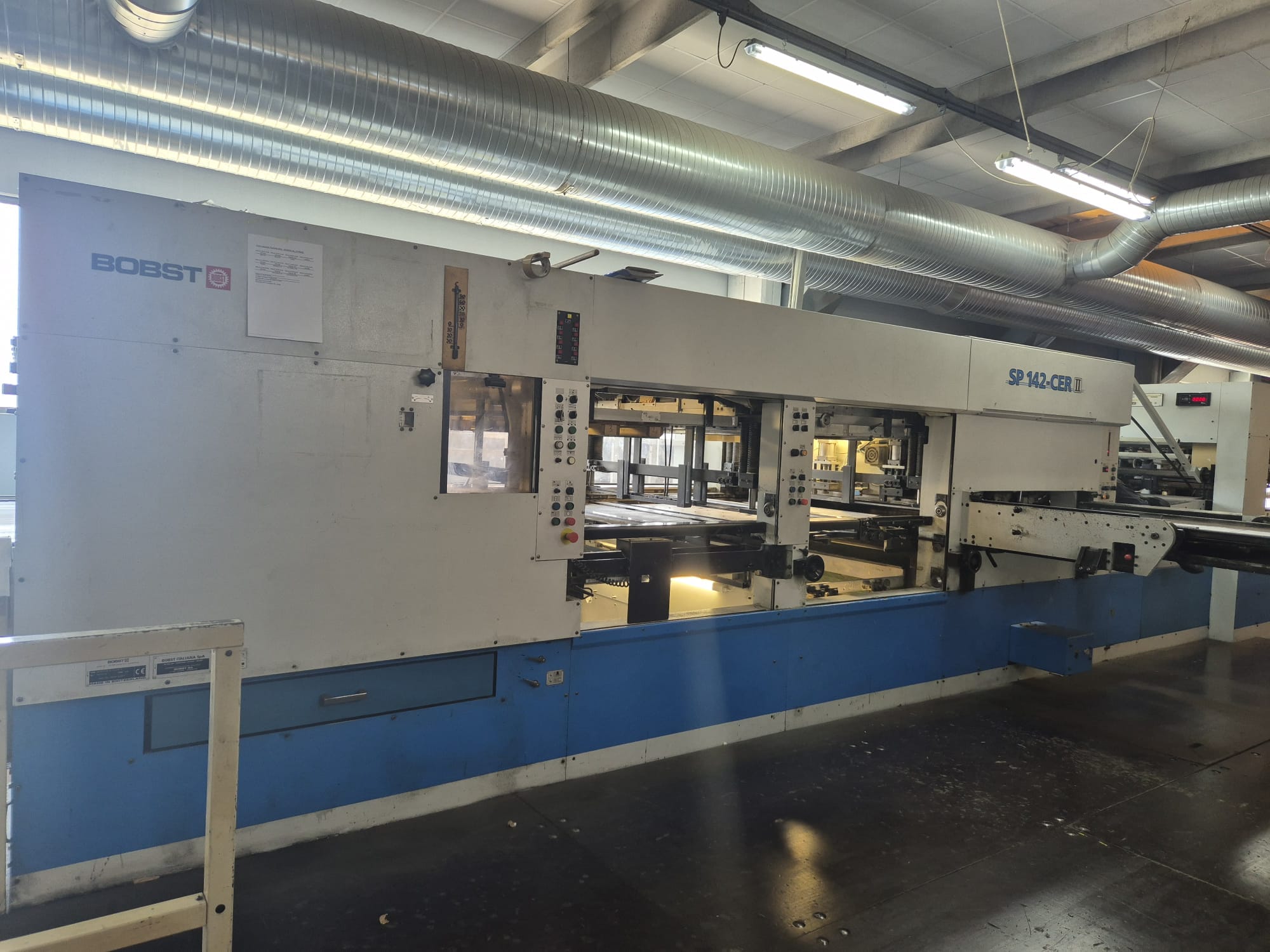

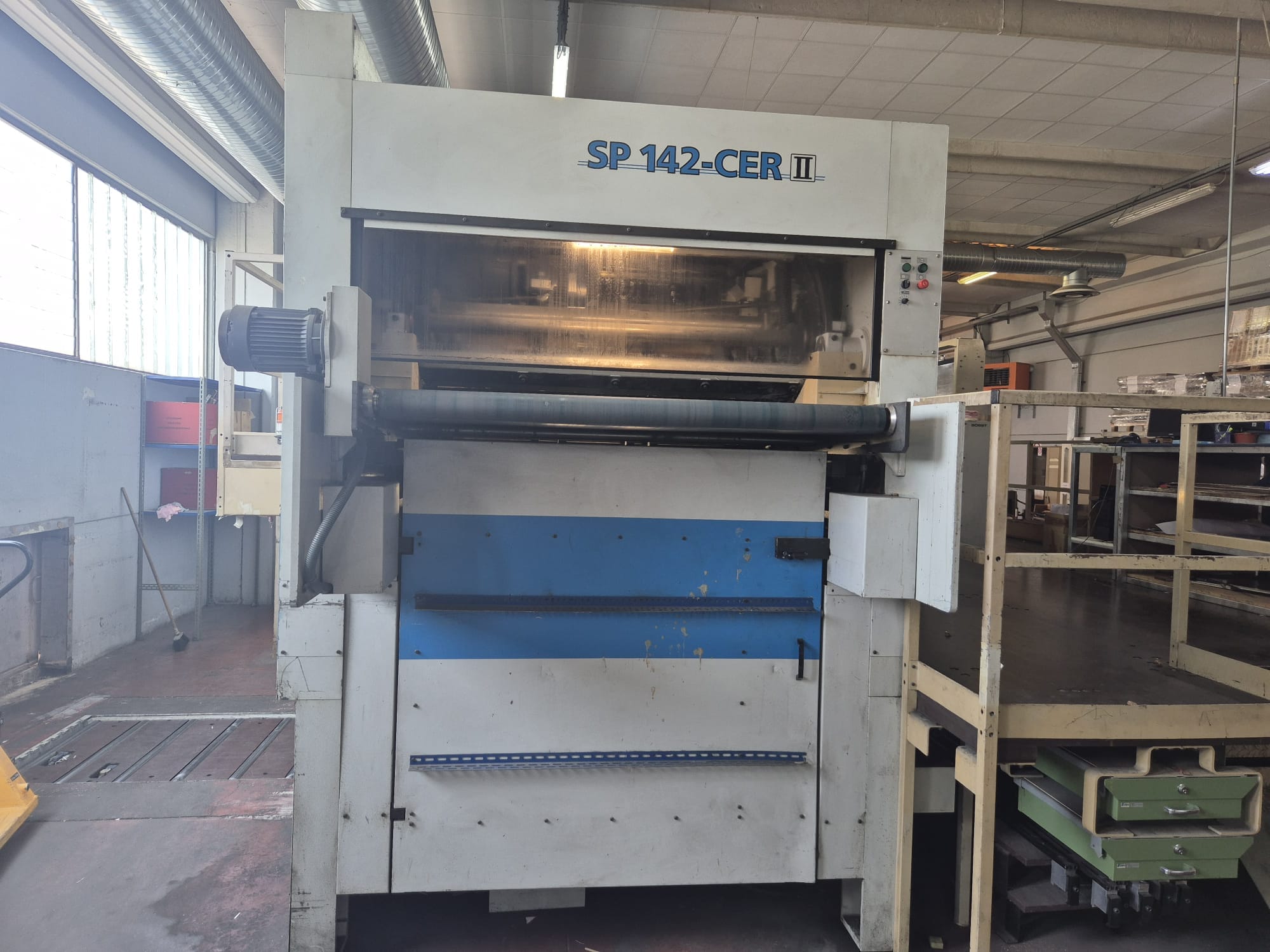

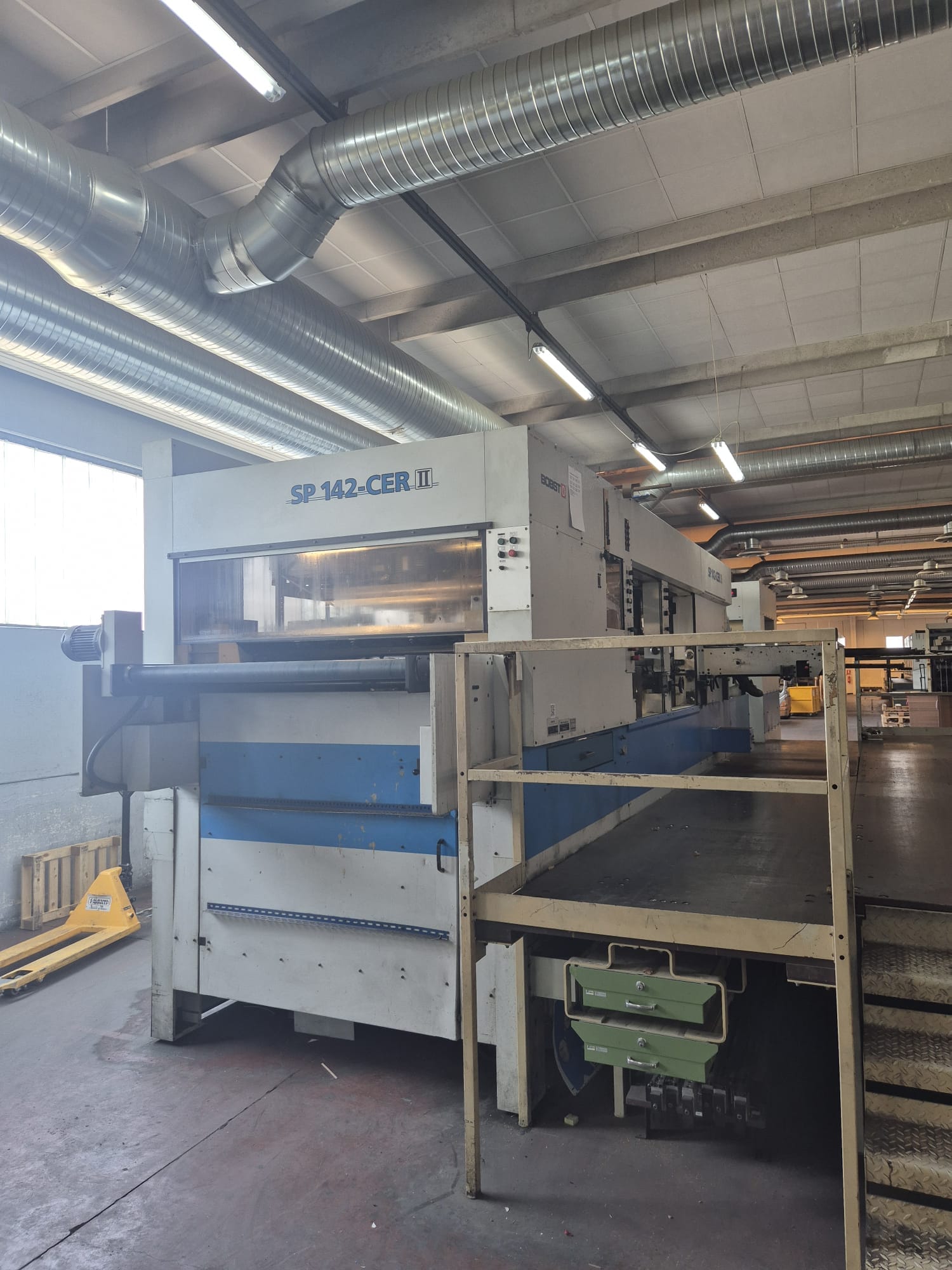

BOBST SP 142 CER II
Year of Construction: 2000
22.000 working hours
Extra Large Walkway
Platform with safety bar
Centerline system for quick job changeover
Electronic device for sheet travel control
Gripper bars
Bobst electronic system for machine management
Main motor with frequency converter control
E-58 Perforated Compensation Plate, ground steel, thickness 4 mm, ensuring permanent vacuum contact between support plate, compensation sheet and thin sheet. Thin laminations held by screws and vacuum system
Feeder
Manual Non-Stop device
Automatic lateral pile adjustment via non-contact probes (photocells)
Side blowers adjustable with Centerline marks
Suction unit
Sheet synchronization device for precise positioning at front lays during standstill
Feed table with pre-register device for smooth sheet arrival
Photoelectric pile height control at front edge with automatic suction unit positioning
Safety system for lowering the pile tray
Introduction Table
Sheet synchronizer with adjustable running and LED indicator
Laterally guided transport belts with automatic disengagement
Anti-static stainless steel feed table
Laterally guided transport belts with automatic disengagement
Platen
Die-cutting device without gripper band
Oil conditioning unit for die-cutting stability with temperature display and programmable preheating
Centering and closing of die-cutting equipment
Automatic closing of frame and support plate
Frame closing towards upper block
Electronic die-cutting force measurement
Synthetic support plate for vacuum system
Motorized cutting force adjustment via push button
Braking device via Bernoulli system
2 Upper frames (E-1) with fixed bottom, 2 mm bottom sheet and 1 mm synthetic protection plate
2 Cutting plates (E-4)
Gripper reopening device
Frame turner in the platen
1 E-55 Adjustable Supporting Plate Centerings
Stripping Station
3-drawer frame system
Bernoulli braking device
1 Upper drawer frame (F-2)
Upper extraction equipment (F-21) including bars, brackets, extractor holders and extractors Ø 3, 5 and 10 mm
Fixing material for extraction tool (F-22)
1 Central drawer frame
Extraction table fastening material (F-75)
1 Lower drawer frame (F-8)
Lower extraction equipment (F-81) with rods and telescopic needles
F-4 Top drawer frame with perforated plate and fixing material

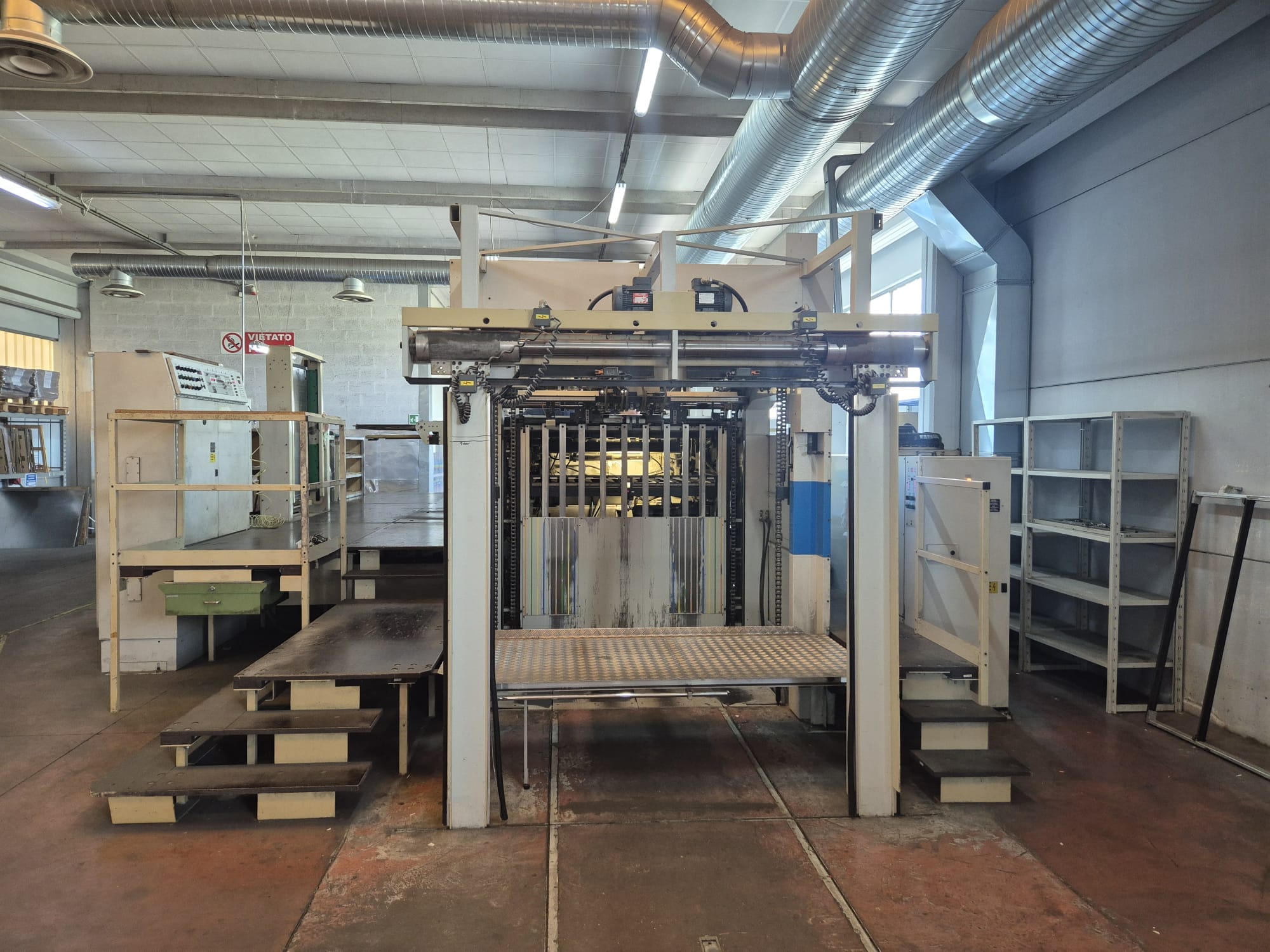

Blanking Station
Automatic sheet insertion device
Drawer sheet device with electrical sheet presence control
Clamp opening device for smooth stacking
Automatic pallet change with photoelectric safety barrier (non-conductor side)
Automatic Non-Stop device
Non-stop bars in high and low positions
Stack raising safety device
Belt for evacuation of trimmings or residual grid, including quality control sheet removal
Residual grid braking brush
Bernoulli braking device
1 Upper drawer frame (H-21)
1 Universal upper tool (H-25)
Fixing material for separation tool (H-26)
1 Bottom drawer frame with fastening material (H-5)
1 Adjustable lower tool (H-6) including universal frame (H-61) and separation grid assembly material
Peripherals
Control cabinet cooling unit
Maximum sheet size: 1020 × 1420 mm
