Description

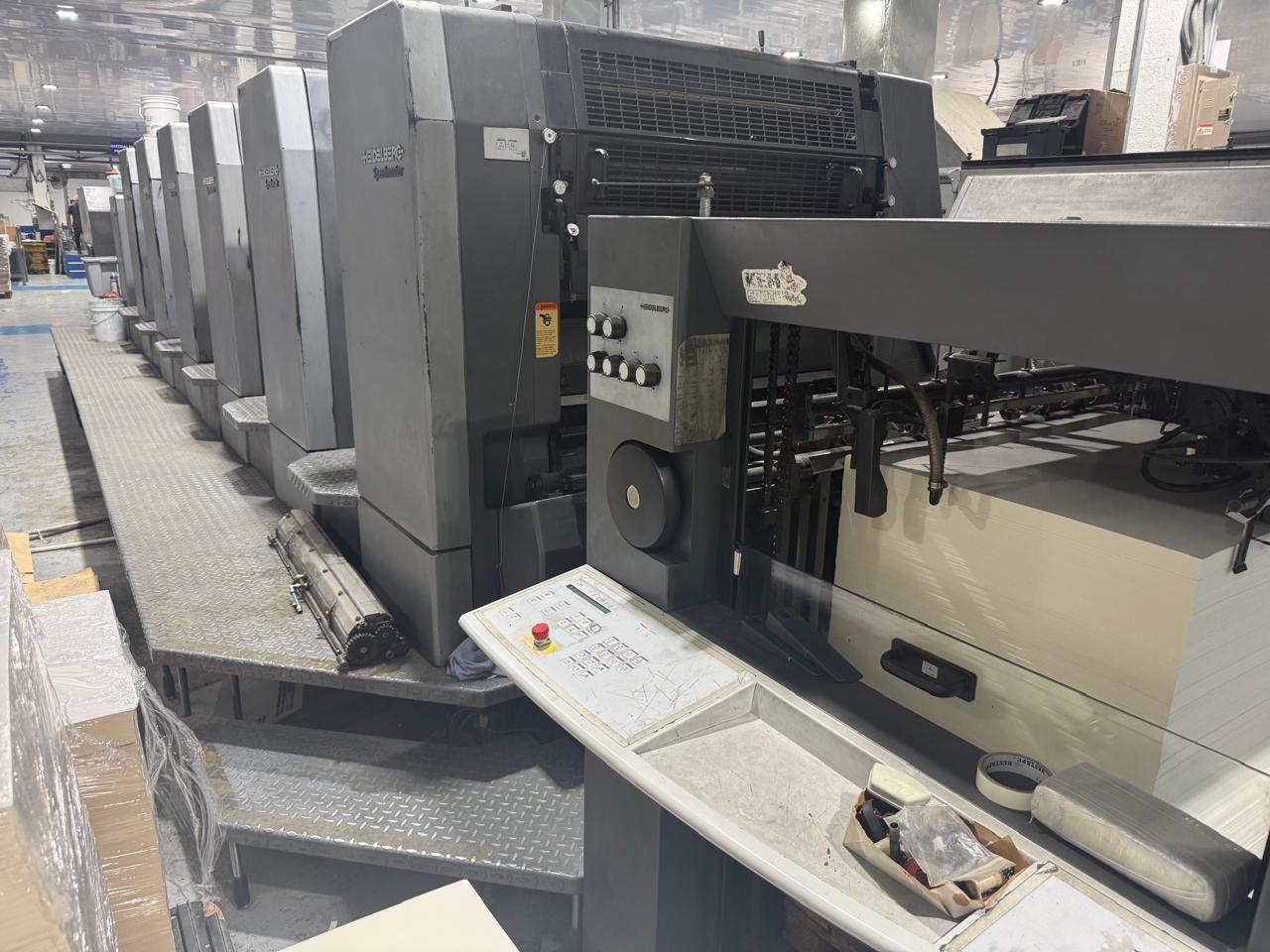

HEIDELBERG SM 102-6-P3+L
Year: 2001
Serial Number: 544046
Format: 72 x 102 cm
Impressions: Approx. 302 million
Packaging Configuration Note
This machine was factory-configured for carton board production, equipped withreinforced grippers and springs across all gripper bars to ensure stable sheet transportand precise register on heavy substrates. While it can handle light papers, its design isspecifically optimized for high-quality packaging applications.
Recent Upgrades & Maintenance
• Technotrans cooling system in new condition
• New pump installed in coating unit
• New pneumatic valves and cylinders in all printing units
• Ink and dampening rollers replaced 6 months ago
Configuration
• 6 Printing Units
• Coating Unit (Lacquer)

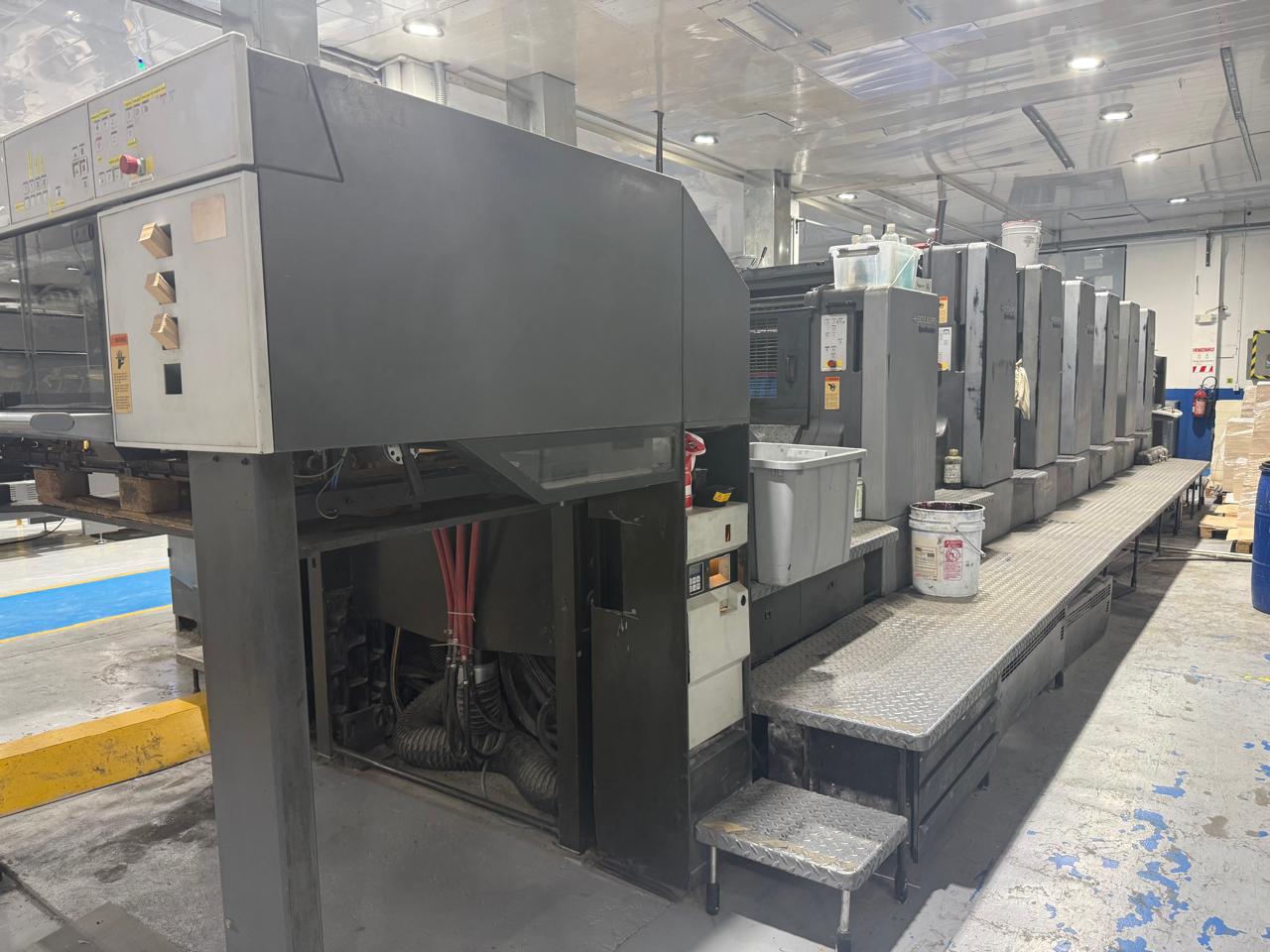

• Extended Delivery (LSL)
• Inline configuration (machine working inline only)
• Equipped with full set of grippers for packaging production
Printing & Inking System
• Inking system: approx. 21 rollers / 32 ink zones
• Dampening system: Alcolor continuous dampening
• Chrome plated cylinders: plate, blanket and impression
Plate System
• AutoPlate (semi-automatic plate changing system)
Preset Automation System

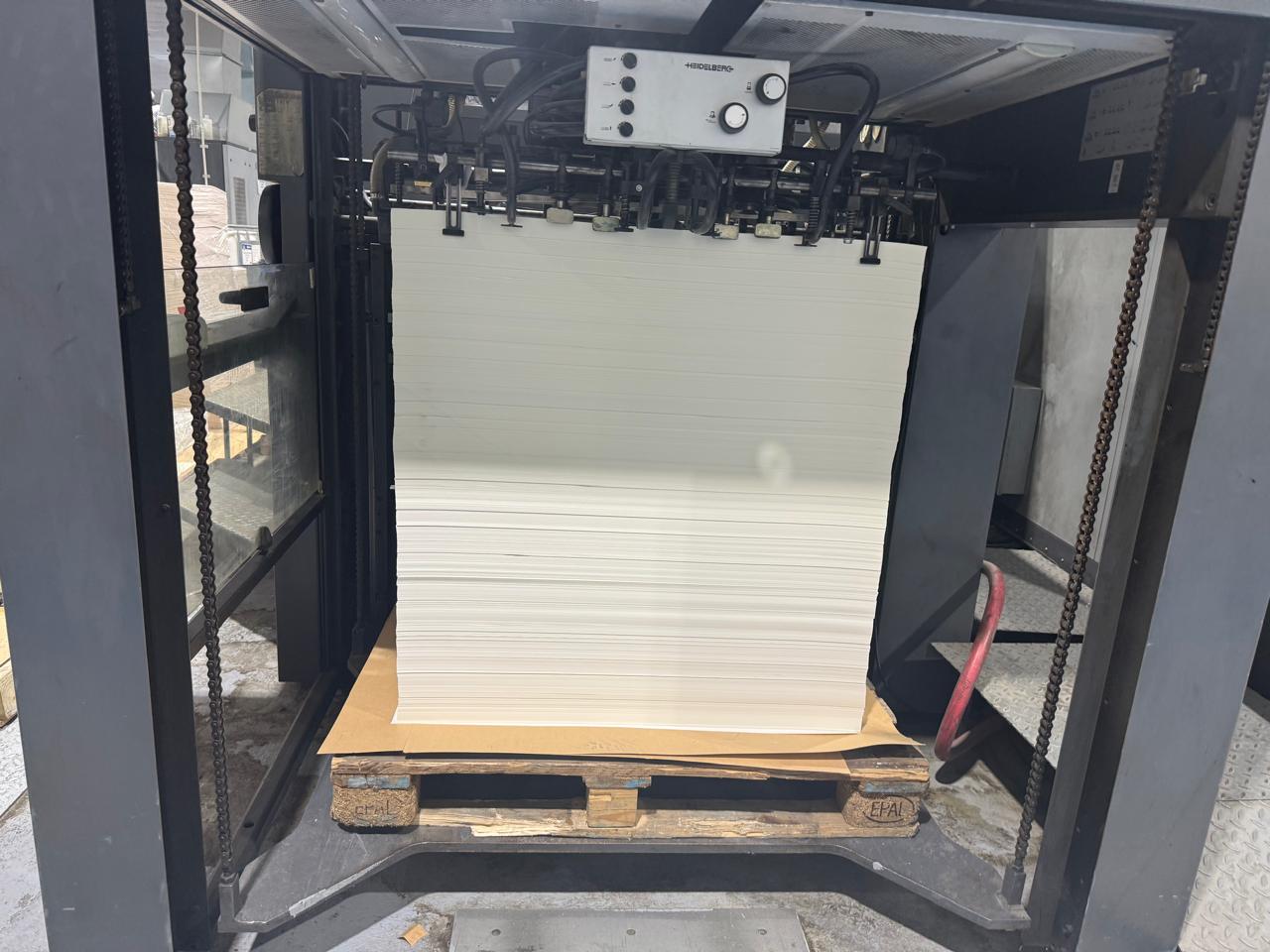

Preset Plus Feeder
• Automatic format setting
• Suction head and air control
• Automatic side and front lay adjustment
• Double sheet detector (if equipped)
• Integrated control via CP2000
Preset Register System
• Automatic lateral and circumferential register
• Motorized adjustment from console
• Reduced makeready times
Preset Delivery
• Automatic gripper and braking adjustment
• Automatic pile control
• Antistatic system (Eltex)
• Powder spray system
Control System
• CP 2000 Control Desk
• Ink control via 32 zones
• Job memory storage
• Remote control of register, ink and air settings
• Integration with feeder and delivery preset systems
• Production monitoring and counter display
Auxiliary Equipment
• Ink temperature control system (Technotrans / CombiStar)
• Automatic washing systems (rollers, blankets, cylinders)
• Powder spray system (CleanStar)
• IR / Hot air drying system (DryStar – if equipped)
• Antistatic control at feeder and delivery
Materials Printed
The machine has been successfully printing:
• Carton Board: C10 / C12 / C14 / C16
• Newsprint: 49 gsm
• Bond Paper: 56 gsm / 60 gsm
Condition
• Machine in production
• Well maintained
• Clean condition
• Free damages in cylinders or gears.
Price: On request for
