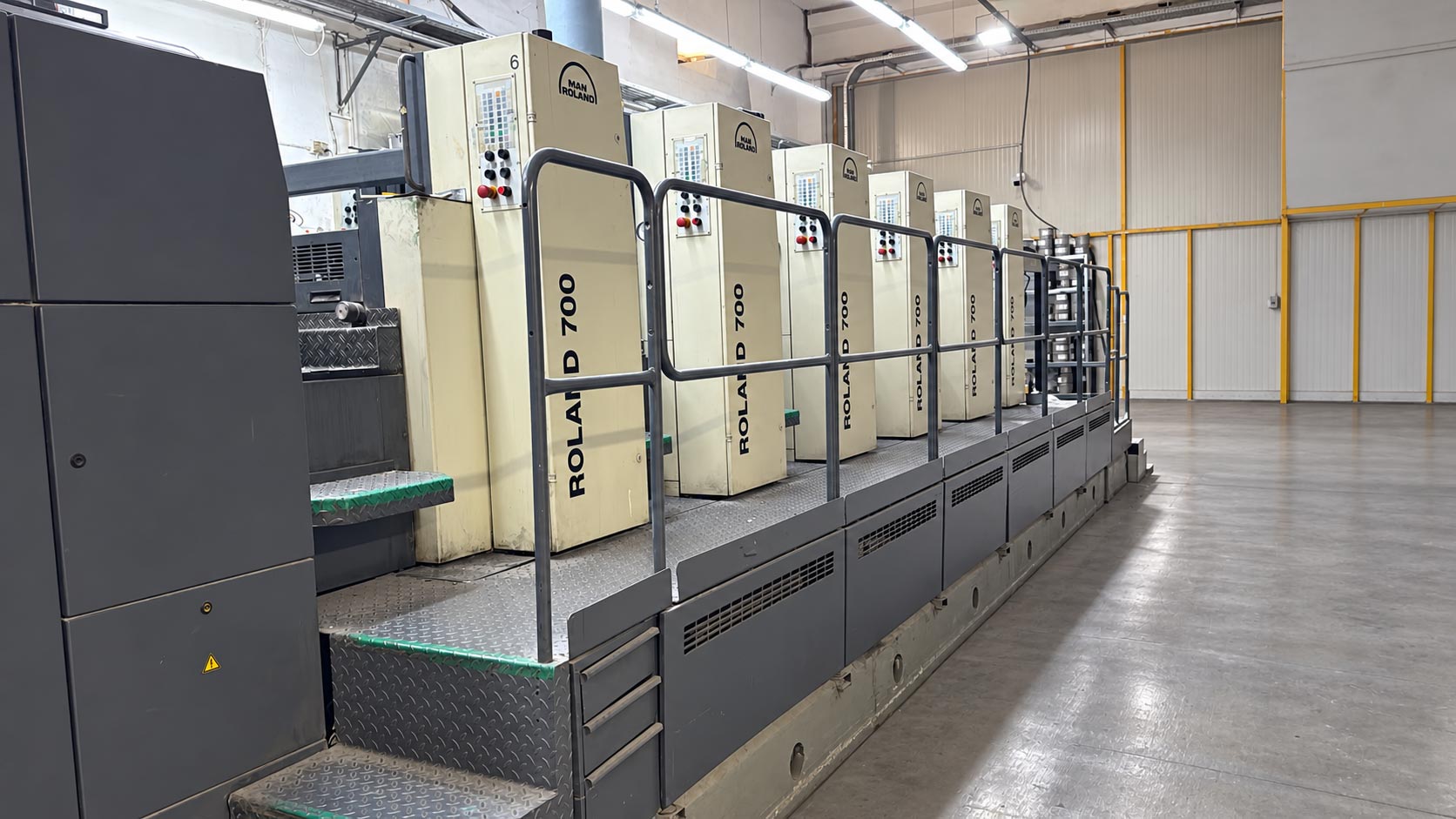

MAN ROLAND R705-3B LV – 2006

Year: 2006
Configuration: 5 Colours + Inline Coating
Format: 740 x  1,040 mm
Impressions: Approx. 250 million
Availability: Please enquire

Approx. 250 million impressions

TECHNICAL SPECIFICATIONS

Printing Units: 5 Colours + Inline Coating (LV)
Maximum Sheet Size: 740 × 1,040 mm – B1 Format
Maximum Image Area: 715 × 1,020 mm
Minimum Sheet Size: 340 × 480 mm
Maximum Speed: 15,000 sheets/hour
Stock Thickness: 0.04 – 1.0 mm
Plate Size: 790 × 1,030 mm
Approx. Weight: 48 tonnes
Installed Power: Approx. 75 kW
Configuration: Straight Machine – 5/0

EQUIPMENT

PPL – Power Plate Loading

Go4Colour Spectro System – Remote ink control with density and Delta E monitoring

Rolandmatic Delta alcohol dampening system

Technotrans ink temperature control and refrigeration

AlcoSmart

Chamber doctor blade coating unit

Eltosch IR Dryer

Eltosch Hot Air Dryer

Graphix Powder Spray

Extended delivery

The machine is available for inspection by appointment.

Photos, videos and further technical information are available upon request.

Do not hesitate to contact us should you require any further information.
